UCC5632MWP TI Interface IC | SCSI Terminator | 9-Line, 2.7-5.5V

Product Overview

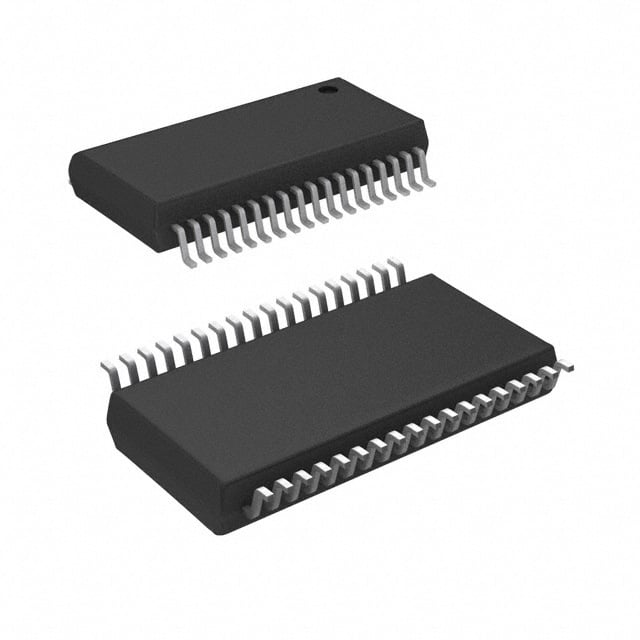

The UCC5632MWP from Texas Instruments is a 9-line SCSI (Small Computer System Interface) active terminator designed for high-performance bus termination. It integrates nine 110-ohm termination resistors and a precision voltage reference, ensuring signal integrity in high-speed SCSI applications. Operating from a 2.7V to 5.5V supply, it supports both single-ended and differential SCSI standards. The device is available in a 28-pin SOIC package (MWP suffix) and is ideal for server, storage, and industrial systems requiring reliable bus termination.

Detailed Technical Specifications

Key Features

• Integrated 9-line active termination for SCSI buses
• Precision 110 Ω termination resistors with ±1% tolerance
• Low output capacitance for high-speed signal integrity
• Wide supply voltage range: 2.7V to 5.5V
• Thermal shutdown protection
• Compatible with single-ended and differential SCSI
• Low power consumption in disconnect mode

Target Applications

• SCSI backplanes in enterprise storage arrays (e.g., Dell EMC PowerVault)
• RAID controllers (e.g., Broadcom MegaRAID)
• Server motherboards (e.g., HPE ProLiant DL380)
• Industrial data acquisition systems
• 5G base station control modules
• Automotive infotainment systems with SCSI interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC5632MWP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
