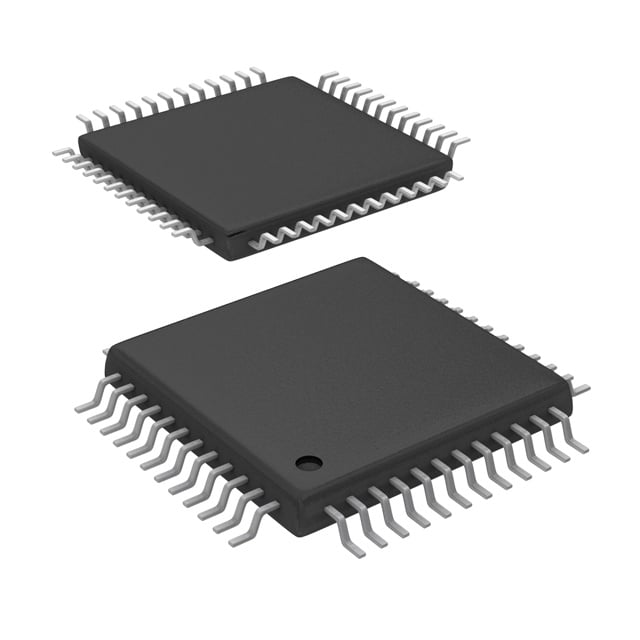

VSP10T21PFB TI Analog Front End | 48-TQFP（7X7） | 10-Channel, 12-Bit ADC

Product Overview

The VSP10T21PFB from Texas Instruments is a high-performance analog front-end (AFE) IC designed for digital imaging applications. It integrates a 10-channel, 12-bit analog-to-digital converter (ADC) with correlated double sampling (CDS) and programmable gain amplifier (PGA) to process CCD or CMOS sensor outputs. Housed in a compact 48-pin TQFP (7x7mm) package, it offers low noise, high speed, and low power consumption, making it ideal for multifunction printers, document scanners, and industrial imaging systems.

Detailed Technical Specifications

Key Features

• 10-channel, 12-bit ADC with CDS and PGA
• Low noise: 0.5 LSB RMS
• Programmable gain: 0 dB to 18 dB
• On-chip clamp and sample-and-hold
• Serial LVDS output interface
• Low power: 350 mW at 40 MSPS
• Small footprint: 48-TQFP (7x7mm)

Target Applications

• Multifunction printers (MFPs) and document scanners
• Industrial machine vision cameras
• Medical imaging devices (e.g., X-ray flat panel detectors)
• Barcode readers and optical inspection systems
• 5G base station optical module monitoring (e.g., for signal integrity)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VSP10T21PFB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
