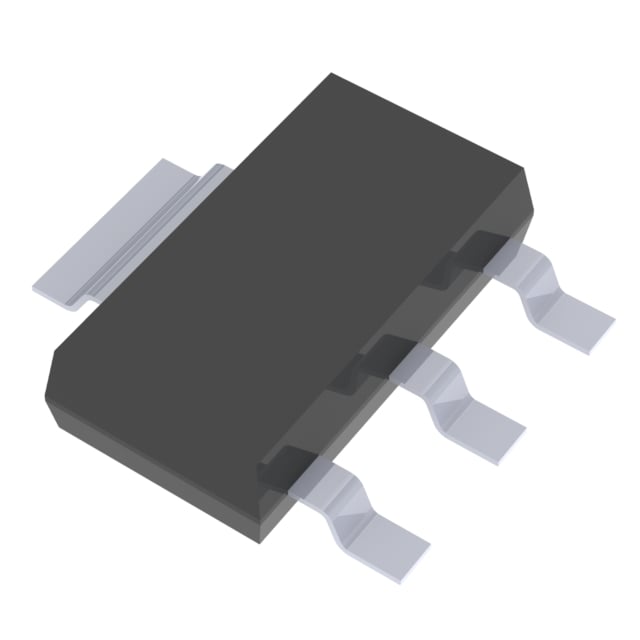

BTS4141NHUMA1 Infineon Power Switch | PG-SOT223-4 | 200mOhm, 1.5A

Product Overview

The BTS4141NHUMA1 is a high-side power switch from Infineon, designed for automotive and industrial applications. It integrates a vertical N-channel power MOSFET with charge pump and protection features in a compact PG-SOT223-4 package. The device provides a single channel with a typical on-resistance of 200 mΩ and a continuous load current capability of 1.5 A. It operates over a wide input voltage range from 5 V to 34 V, making it suitable for 12 V and 24 V systems. The BTS4141NHUMA1 includes comprehensive protection functions such as overcurrent, overtemperature, and short-circuit protection, as well as diagnostic feedback via a status output.

Detailed Technical Specifications

Key Features

• Single-channel high-side switch with integrated N-channel power MOSFET
• Low on-resistance of 200 mΩ for efficient power delivery
• Wide input voltage range from 5 V to 34 V
• Comprehensive protection: overcurrent, overtemperature, short-circuit, and reverse battery
• Diagnostic feedback via open-drain status output
• Low standby current of 2 µA for battery-powered applications
• Compact PG-SOT223-4 package for space-constrained designs
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive body control modules (e.g., lighting, wipers, seat adjustment)
• Industrial automation (e.g., PLC outputs, actuator control)
• 5G base station power distribution (e.g., remote radio unit power switching)
• Dashboard and infotainment systems (e.g., display backlight, audio amplifier power)
• Battery management systems (e.g., load disconnect)
• General-purpose high-side switching in 12 V and 24 V systems
