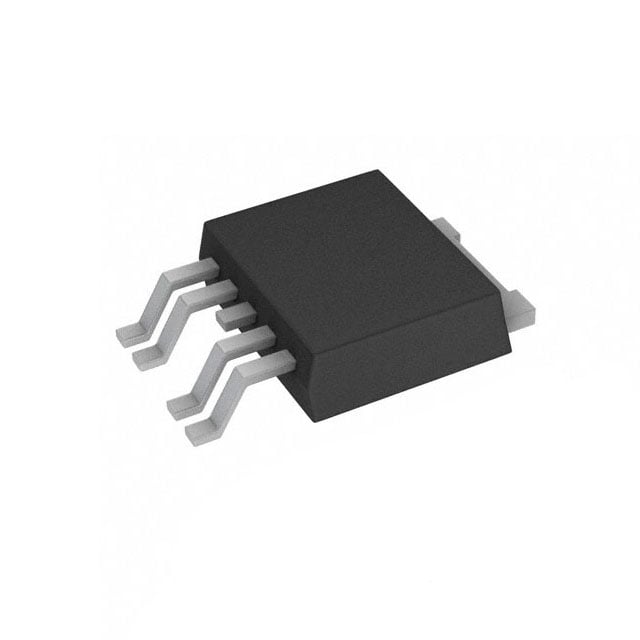

BTS500251TEAAUMA1 Infineon Power Switch | PG-TO252-5-11 | 25mΩ, 5V-28V

Product Overview

The BTS500251TEAAUMA1 is a high-side power switch from Infineon's PROFET™+2 family, designed for automotive and industrial applications. It integrates a vertical N-channel power MOSFET with charge pump and protection features in a PG-TO252-5-11 package. The device provides a single channel with a typical on-state resistance of 25mΩ, supporting continuous load currents up to 5A. It operates over a wide supply voltage range of 5V to 28V, making it suitable for 12V and 24V systems. The switch offers advanced protection including overcurrent, overtemperature, and short-circuit protection, as well as diagnostic feedback via a current sense pin.

Detailed Technical Specifications

Key Features

• Low on-state resistance (25 mΩ) for high efficiency
• Wide input voltage range (5 V to 28 V)
• Integrated protection: overcurrent, overtemperature, short-circuit, undervoltage lockout
• Diagnostic feedback via current sense pin
• Low standby current (< 5 µA)
• Automotive qualified (AEC-Q100)
• Green product (RoHS compliant)

Target Applications

• Automotive body control modules: lighting, wiper, window lift, seat adjustment
• 5G base station power distribution: remote radio unit (RRU) power switching
• Industrial PLC output modules: actuator control
• Dashboard and infotainment systems: display backlight, audio amplifier power
• Battery management systems: load disconnect

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BTS500251TEAAUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BTS500251TEAAUMA1 是英飛凌 PROFET™+2 系列的高邊功率開關，專為汽車和工業應用設計。它集成了垂直 N 溝道功率 MOSFET、電荷泵和保護功能，採用 PG-TO252-5-11 封裝。該器件提供單通道，典型導通電阻為 25mΩ，支持高達 5A 的連續負載電流。工作電源電壓範圍為 5V 至 28V，適用於 12V 和 24V 系統。該開關提供先進的保護功能，包括過流、過溫和短路保護，並通過電流檢測引腳提供診斷反饋。

詳細技術參數

核心特性

• 低導通電阻 (25 mΩ)，高效率
• 寬輸入電壓範圍 (5 V 至 28 V)
• 集成保護：過流、過溫、短路、欠壓鎖定
• 通過電流檢測引腳提供診斷反饋
• 低靜態電流 (< 5 µA)
• 通過汽車級認證 (AEC-Q100)
• 綠色產品 (符合 RoHS)

典型應用場景

• 汽車車身控制模塊：照明、雨刮、車窗升降、座椅調節
• 5G 基站配電：遠程射頻單元 (RRU) 功率切換
• 工業 PLC 輸出模塊：執行器控制
• 儀表盤和信息娛樂系統：顯示背光、音頻放大器電源
• 電池管理系統：負載斷開

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BTS500251TEAAUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
