BTS70101EPAXUMA1 Infineon Power Switch | PG-TSDSO-14-22 | 1-Channel, 70mOhm, 5V-28V

Product Overview

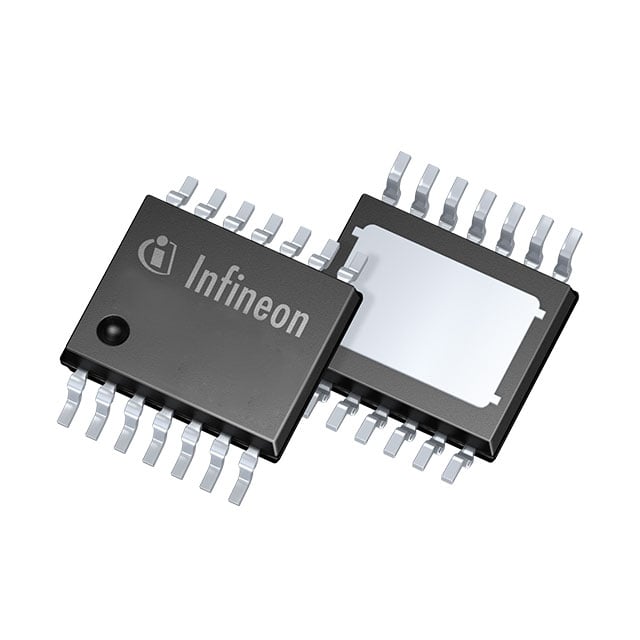

The BTS70101EPAXUMA1 is a high-side power switch from Infineon's PROFET™+2 family, designed for automotive and industrial applications. It integrates a 1-channel N-channel vertical power MOSFET with charge pump, current sense, and protection features in a compact PG-TSDSO-14-22 package. The device offers a typical on-resistance of 70mΩ, supporting continuous load currents up to 3A. It operates over a wide input voltage range of 5V to 28V, making it suitable for 12V and 24V board nets. The BTS70101EPAXUMA1 provides advanced protection including overcurrent, overtemperature, short-circuit, and reverse battery protection, ensuring robust operation in harsh environments.

Detailed Technical Specifications

Key Features

• Single-channel high-side switch with 70mΩ on-resistance
• Wide input voltage range: 5V to 28V
• Integrated charge pump for low-voltage operation
• Current sense output with high accuracy
• Comprehensive protection: overcurrent, overtemperature, short-circuit, reverse battery, and ESD
• Low standby current (< 2 μA)
• Automotive qualified (AEC-Q100)
• Compact PG-TSDSO-14-22 package for space-constrained designs

Target Applications

• Automotive body control modules (e.g., lighting, wipers, window lifts)
• 5G base station power distribution
• Industrial PLC output stages
• Dashboard and infotainment systems
• LED lighting control
• Motor control for small DC motors
