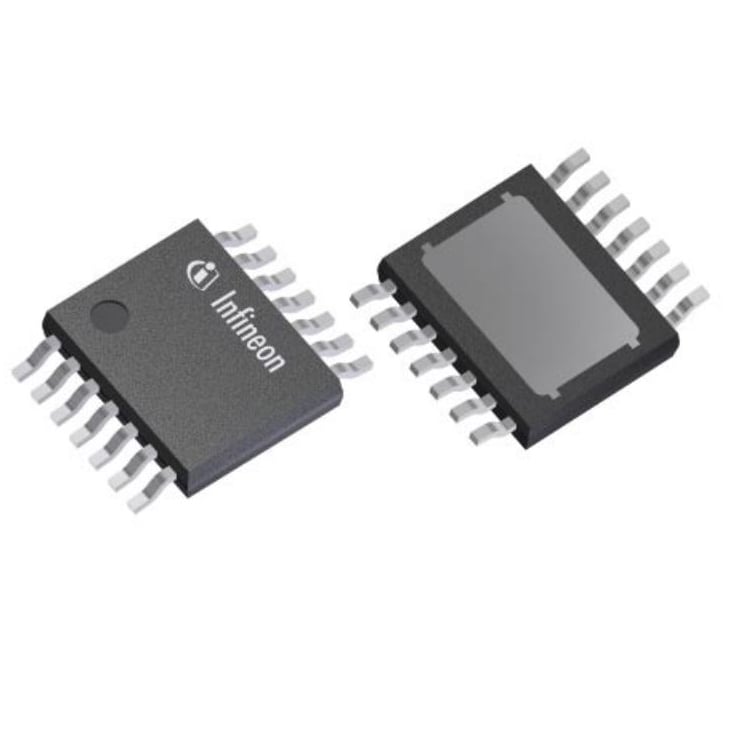

BTS72004EPAXUMA1 Infineon Power Switch | PG-TSDSO-14 | 2-Channel, 70mOhm

Product Overview

The BTS72004EPAXUMA1 is a high-side power switch from Infineon's PROFET™+2 family, designed for automotive and industrial applications. It integrates two channels with enhanced protection and diagnostic features, housed in a compact PG-TSDSO-14 package. This device offers a typical on-resistance of 70mOhm per channel, supporting continuous currents up to 4A per channel. It operates over a wide supply voltage range from 3.1V to 28V, making it suitable for 12V and 24V systems. The BTS72004EPAXUMA1 includes advanced protection functions such as overcurrent, overtemperature, and short-circuit protection, as well as a diagnostic enable pin for fault reporting.

Detailed Technical Specifications

Key Features

• Two-channel high-side power switch with 70mOhm typical RDS(on)
• Wide input voltage range: 3.1V to 28V
• Enhanced protection: overcurrent, overtemperature, short-circuit
• Diagnostic enable pin for fault reporting
• Low standby current: 0.5 µA typical
• Compact PG-TSDSO-14 package for space-constrained designs
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive body control modules (e.g., lighting, wiper, window lift)
• Industrial PLC output stages
• 5G base station power distribution
• Dashboard and infotainment systems
• LED lighting control in automotive and industrial
