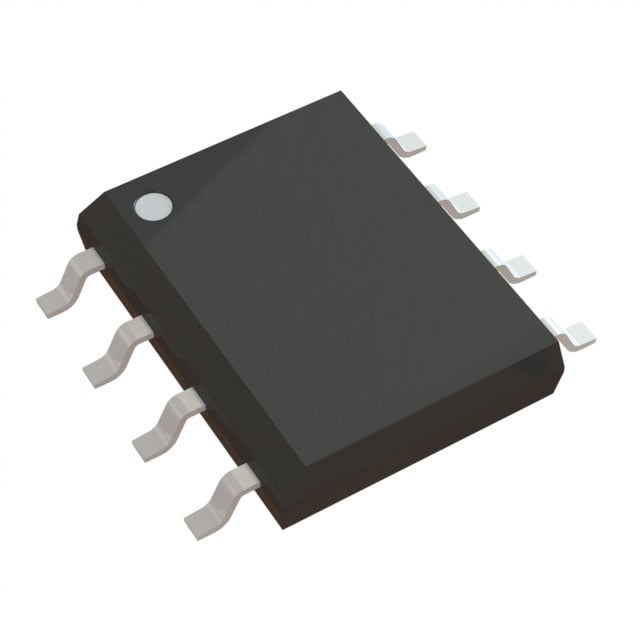

BTT3050EJXUMA1 Infineon Power Switch | PG-TDSO-8-31 | 50mOhm, 3A

Product Overview

The BTT3050EJXUMA1 is a high-side power switch from Infineon's PROFET™+2 product family, designed for automotive and industrial applications requiring robust protection and diagnostic capabilities. It integrates a vertical power MOSFET with charge pump, current sensing, and protection features in a compact PG-TDSO-8-31 package. The device provides a single channel with a typical on-resistance of 50mΩ, capable of driving loads up to 3A continuous current. It operates over a wide input voltage range from 3.1V to 28V, making it suitable for 12V and 24V board nets.

Detailed Technical Specifications

Key Features

• Low on-resistance (50 mΩ) minimizes power dissipation
• Integrated charge pump for low voltage operation
• Advanced protection: overcurrent, overtemperature, undervoltage, short circuit to GND and battery
• Diagnostic feedback via current sense pin (IS)
• Open load detection in ON and OFF states
• Very low standby current (< 0.5 μA)
• Reverse battery protection with external resistor
• Green product (RoHS compliant)

Target Applications

• Automotive body control modules: lighting (LED headlamps, DRLs), HVAC blowers, wiper motors
• 5G base station power distribution: remote radio unit (RRU) load switching
• Industrial PLC output modules: driving solenoids, relays, and actuators
• Dashboard and infotainment systems: power supply for displays and control units
• Battery management systems: load disconnect and pre-charge circuits

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BTT3050EJXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BTT3050EJXUMA1 是英飛凌 PROFET™+2 系列的高邊功率開關，專為汽車和工業應用設計，具有強大的保護和診斷功能。它將垂直功率 MOSFET、電荷泵、電流檢測和保護功能集成在緊湊的 PG-TDSO-8-31 封裝中。該器件提供單通道，典型導通電阻為 50mΩ，能夠驅動高達 3A 的連續電流。它可在 3.1V 至 28V 的寬輸入電壓範圍內工作，適用於 12V 和 24V 電網。

詳細技術參數

核心特性

• 低導通電阻（50 mΩ），降低功耗
• 集成電荷泵，支持低電壓工作
• 先進保護：過流、過溫、欠壓、對地短路和對電池短路
• 通過電流檢測引腳（IS）提供診斷反饋
• 開路檢測（ON 和 OFF 狀態）
• 極低待機電流（< 0.5 μA）
• 通過外部電阻實現反極性保護
• 綠色產品（符合 RoHS）

典型應用場景

• 汽車車身控制模塊：照明（LED 前大燈、日行燈）、HVAC 鼓風機、雨刮電機
• 5G 基站配電：遠程無線單元（RRU）負載切換
• 工業 PLC 輸出模塊：驅動電磁閥、繼電器和執行器
• 儀表板和信息娛樂系統：顯示器和控制單元的電源
• 電池管理系統：負載斷開和預充電電路

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BTT3050EJXUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
