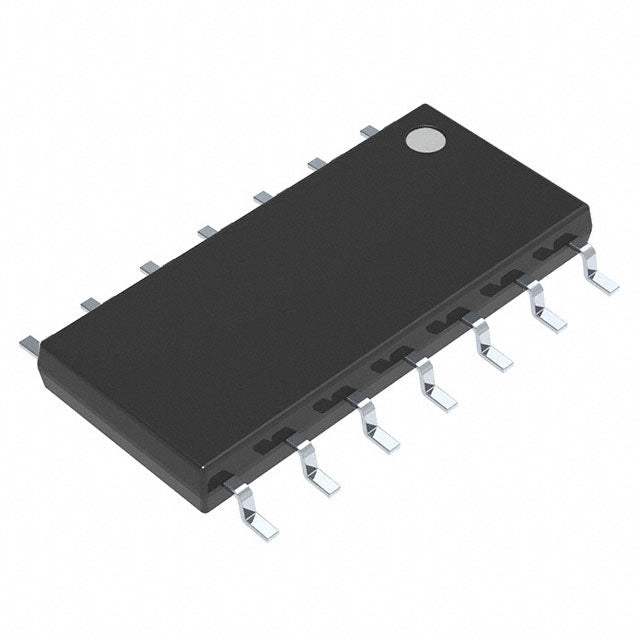

BTT61002ERAXUMA1 Infineon Power Switch | PG-TDSO-14-21 | 1-Channel, 2mOhm

Product Overview

The BTT61002ERAXUMA1 is a high-side power switch from Infineon's PROFET™+2 family, designed for automotive and industrial applications. It integrates a single N-channel vertical power MOSFET with charge pump, current sense, and protection features in a compact PG-TDSO-14-21 package. The device provides a 2mOhm typical on-resistance, enabling efficient power distribution with minimal voltage drop. It supports a wide input voltage range from 3V to 28V and delivers up to 10A continuous current. Advanced protection includes overcurrent, overtemperature, short-circuit, and load dump protection, ensuring robust operation in harsh environments.

Detailed Technical Specifications

Key Features

• Low on-resistance (2 mOhm) for high efficiency
• Integrated charge pump for low voltage operation
• Accurate current sense for system monitoring
• Comprehensive protection: overcurrent, overtemperature, short-circuit, load dump, reverse battery
• Open load detection in ON and OFF states
• AEC-Q100 qualified for automotive applications
• Green product (RoHS compliant)

Target Applications

• Automotive: 5G base station power distribution, ECU power supplies, body control modules, lighting systems (e.g., LED headlights, dashboard backlighting)
• Industrial: Programmable logic controllers (PLCs), industrial automation, power distribution in smart factories
• Consumer: High-power USB ports, power management in servers and networking equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BTT61002ERAXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BTT61002ERAXUMA1 是英飛凌 PROFET™+2 系列的高側電源開關，專為汽車和工業應用設計。它集成了單個 N 溝道垂直功率 MOSFET、電荷泵、電流檢測和保護功能，採用緊湊的 PG-TDSO-14-21 封裝。該器件提供 2mOhm 的典型導通電阻，能夠以最小的壓降實現高效的功率分配。它支持 3V 至 28V 的寬輸入電壓範圍，並提供高達 10A 的連續電流。先進的保護功能包括過流、過溫、短路和負載突降保護，確保在惡劣環境中的穩健運行。

詳細技術參數

核心特性

• 低導通電阻 (2 mOhm)，高效率
• 集成電荷泵，支持低電壓工作
• 精確的電流檢測，用於系統監控
• 全面的保護：過流、過溫、短路、負載突降、反極性
• 開路負載檢測（ON 和 OFF 狀態）
• 通過 AEC-Q100 認證，適用於汽車應用
• 綠色產品（符合 RoHS）

典型應用場景

• 汽車：5G 基站配電、ECU 電源、車身控制模塊、照明系統（如 LED 頭燈、儀表板背光）
• 工業：可編程邏輯控制器 (PLC)、工業自動化、智能工廠配電
• 消費類：大功率 USB 端口、服務器和網絡設備的電源管理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BTT61002ERAXUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
