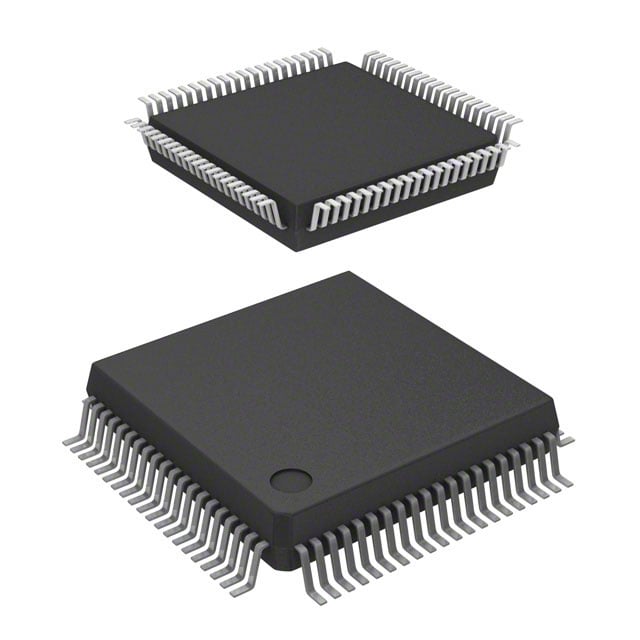

C161SL25MAABXUMA1 Infineon 16-bit MCU | PG-MQFP-80-7 | 25MHz, 128KB Flash

Product Overview

The Infineon C161SL25MAABXUMA1 is a high-performance 16-bit microcontroller based on the C166S V2 core. It operates at up to 25 MHz and features 128 KB of Flash memory and 8 KB of RAM. The device is housed in a PG-MQFP-80-7 package, offering a compact solution for embedded control applications. It integrates a rich set of peripherals including multiple serial interfaces, timers, and an A/D converter, making it suitable for industrial and automotive applications.

Detailed Technical Specifications

Key Features

• High-performance 16-bit C166S V2 core with single-cycle instruction execution
• Up to 25 MHz CPU clock
• 128 KB on-chip Flash with 100k erase/program cycles
• 8 KB on-chip RAM
• Multiple serial interfaces: SPI, UART, I2C
• 10-bit A/D converter with 8 channels
• Flexible timer units (GPT12) for PWM and capture/compare
• Real-time clock (RTC)
• Watchdog timer
• On-chip debug support via JTAG
• Low power modes: Idle, Sleep, and Deep Sleep
• Wide operating voltage range: 3.0V to 5.5V
• Industrial temperature range: -40°C to +85°C

Target Applications

• Industrial automation controllers (e.g., PLCs, motor drives)
• Automotive body electronics (e.g., window lift, seat control modules)
• 5G base station power management and control
• Smart grid metering and monitoring
• Building automation (e.g., HVAC controllers, lighting systems)
• Medical devices (e.g., patient monitoring, infusion pumps)
• Consumer electronics (e.g., home appliances, gaming peripherals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for C161SL25MAABXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 C161SL25MAABXUMA1 是一款基於 C166S V2 內核的高性能 16 位微控制器。它最高運行於 25 MHz，配備 128 KB 閃存和 8 KB RAM。該器件採用 PG-MQFP-80-7 封裝，為嵌入式控制應用提供緊湊的解決方案。它集成了豐富的外設，包括多個串行接口、定時器和 A/D 轉換器，適用於工業和汽車應用。

詳細技術參數

核心特性

• 高性能 16 位 C166S V2 內核，單週期指令執行
• 最高 25 MHz CPU 時鐘
• 128 KB 片上閃存，支持 10 萬次擦寫
• 8 KB 片上 RAM
• 多種串行接口：SPI、UART、I2C
• 10 位 A/D 轉換器，8 通道
• 靈活的定時器單元 (GPT12)，支持 PWM 和捕獲/比較
• 實時時鐘 (RTC)
• 看門狗定時器
• 通過 JTAG 的片上調試支持
• 低功耗模式：空閒、睡眠和深度睡眠
• 寬工作電壓範圍：3.0V 至 5.5V
• 工業溫度範圍：-40°C 至 +85°C

典型應用場景

• 工業自動化控制器（例如 PLC、電機驅動器）
• 汽車車身電子（例如車窗升降、座椅控制模塊）
• 5G 基站電源管理與控制
• 智能電網計量與監控
• 樓宇自動化（例如 HVAC 控制器、照明系統）
• 醫療設備（例如病人監護、輸液泵）
• 消費電子（例如家用電器、遊戲外設）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 C161SL25MAABXUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
