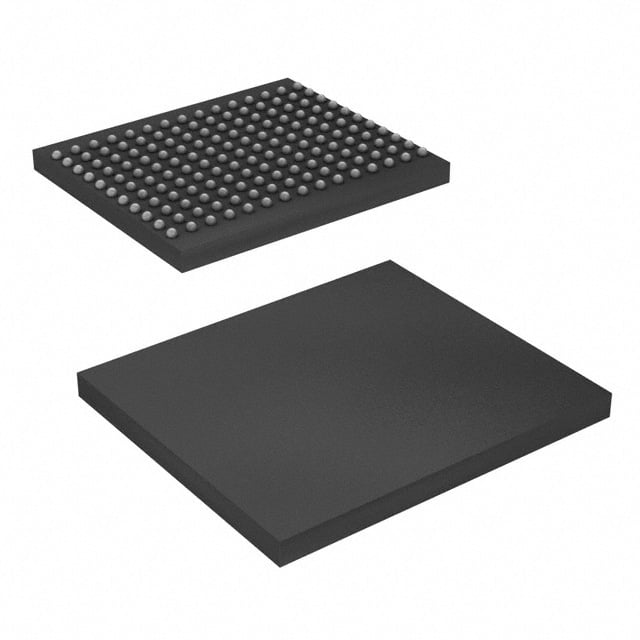

CG7600AA Infineon Clock Generator | 165-FBGA(13x15) | 1.8V, 0.5ps RMS Jitter

Product Overview

The Infineon CG7600AA is a high-performance clock generator IC designed for demanding applications requiring low jitter and multiple output frequencies. Housed in a compact 165-FBGA (13x15) package, it integrates a PLL core with programmable dividers and output drivers. The device operates from a 1.8V supply and delivers up to 12 differential or 24 single-ended clock outputs with sub-0.5ps RMS phase jitter (12kHz-20MHz). It supports frequencies from 1 MHz to 2.5 GHz, making it suitable for 5G infrastructure, data centers, and high-speed networking equipment.

Detailed Technical Specifications

Key Features

• Ultra-low jitter <0.5 ps RMS for high-speed serial links
• Flexible output configuration: up to 12 differential pairs
• Programmable output frequency via I2C/SPI interface
• Integrated loop filter reduces external component count
• Spread spectrum modulation for EMI reduction
• Fail-safe input with glitch-free switching
• Industrial temperature range

Target Applications

• 5G base stations (e.g., Massive MIMO remote radio units)
• Data center switches and routers (e.g., 400G Ethernet)
• High-speed ADC/DAC clocking (e.g., radar systems)
• FPGA reference clocks (e.g., Xilinx RFSoC)
• Test and measurement equipment (e.g., oscilloscope timebase)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CG7600AA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌CG7600AA是一款高性能時鐘發生器IC，專為需要低抖動和多輸出頻率的苛刻應用而設計。採用緊湊的165-FBGA（13x15）封裝，集成PLL核心、可編程分頻器和輸出驅動器。該器件在1.8V電源下工作，可提供多達12個差分或24個單端時鐘輸出，相位抖動低於0.5ps RMS（12kHz-20MHz）。支持1 MHz至2.5 GHz的頻率範圍，適用於5G基礎設施、數據中心和高性能網絡設備。

詳細技術參數

核心特性

• 超低抖動 <0.5 ps RMS，適用於高速串行鏈路
• 靈活的輸出配置：最多12個差分對
• 通過I2C/SPI接口可編程輸出頻率
• 集成環路濾波器，減少外部元件數量
• 展頻調製以降低EMI
• 故障安全輸入，無毛刺切換
• 工業溫度範圍

典型應用場景

• 5G基站（例如大規模MIMO遠程射頻單元）
• 數據中心交換機和路由器（例如400G以太網）
• 高速ADC/DAC時鐘（例如雷達系統）
• FPGA參考時鐘（例如Xilinx RFSoC）
• 測試測量設備（例如示波器時基）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CG7600AA 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
