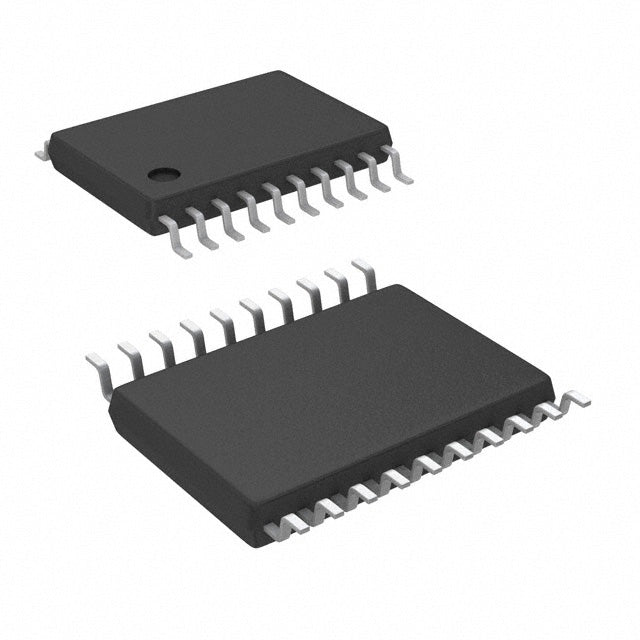

CY2DP1504ZXCT Infineon Clock Buffer | 20-TSSOP | 1:4 Fanout, 2.5V/3.3V

Product Overview

The CY2DP1504ZXCT is a high-performance 1:4 differential clock buffer from Infineon Technologies, designed for low-skew, low-jitter clock distribution in high-speed digital systems. Housed in a compact 20-TSSOP package, this device operates from a 2.5V or 3.3V power supply and supports output frequencies up to 1.5 GHz. It features two selectable input clocks (CLK0, CLK1) and four differential output pairs (Q0–Q3), making it ideal for redundant clock distribution in networking, telecommunications, and data center applications.

Detailed Technical Specifications

Key Features

• 1:4 differential fanout buffer with selectable dual inputs
• Low additive jitter (< 0.2 ps RMS) for high-speed data integrity
• Ultra-low output-to-output skew (< 20 ps)
• Supports multiple input standards: LVPECL, LVDS, HSTL, CML
• Fail-safe input protection and internal termination
• Power supply range: 2.5V or 3.3V
• Industrial temperature range: -40°C to +85°C
• RoHS compliant and lead-free

Target Applications

• 5G base station clock distribution (e.g., Massive MIMO, remote radio units)
• Data center switches and routers (e.g., 400G Ethernet, InfiniBand)
• High-speed ADC/DAC clock buffering (e.g., radar, software-defined radio)
• Automotive advanced driver-assistance systems (ADAS) sensor fusion
• Test and measurement equipment (e.g., oscilloscope front-end clocking)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY2DP1504ZXCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY2DP1504ZXCT 是英飛凌科技推出的一款高性能 1:4 差分時鐘緩衝器，專為高速數字系統中的低偏斜、低抖動時鐘分配而設計。該器件採用緊湊的 20-TSSOP 封裝，支持 2.5V 或 3.3V 電源電壓，輸出頻率高達 1.5 GHz。它具有兩個可選輸入時鐘（CLK0、CLK1）和四個差分輸出對（Q0–Q3），非常適合用於網絡、電信和數據中心應用中的冗餘時鐘分配。

詳細技術參數

核心特性

• 1:4 差分扇出緩衝器，帶可選雙輸入
• 低附加抖動（< 0.2 ps RMS），確保高速數據完整性
• 超低輸出間偏斜（< 20 ps）
• 支持多種輸入標準：LVPECL、LVDS、HSTL、CML
• 故障安全輸入保護和內部端接
• 電源電壓範圍：2.5V 或 3.3V
• 工業溫度範圍：-40°C 至 +85°C
• 符合 RoHS 標準，無鉛

典型應用場景

• 5G 基站時鐘分配（例如大規模 MIMO、遠程射頻單元）
• 數據中心交換機和路由器（例如 400G 以太網、InfiniBand）
• 高速 ADC/DAC 時鐘緩衝（例如雷達、軟件定義無線電）
• 汽車高級駕駛輔助系統（ADAS）傳感器融合
• 測試與測量設備（例如示波器前端時鐘）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY2DP1504ZXCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
