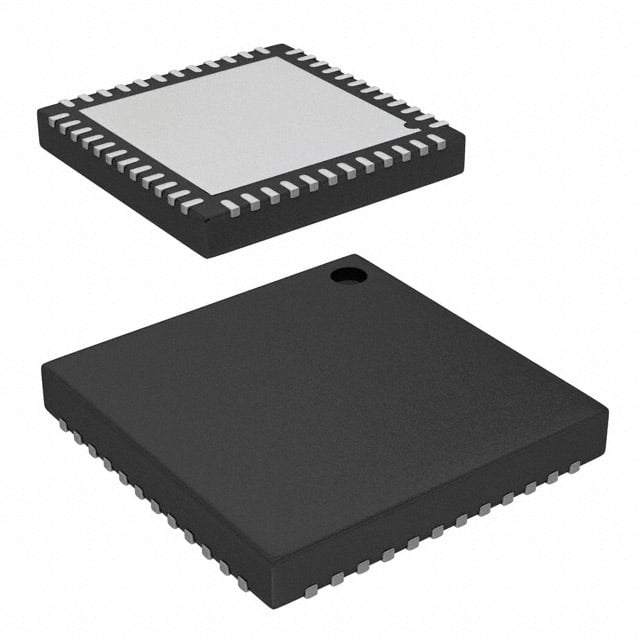

CY8C20636A-24LTXI Infineon CapSense Controller | 48-QFN (7x7) | 32-bit ARM Cortex-M0, 32KB Flash

Product Overview

The CY8C20636A-24LTXI is a high-performance CapSense capacitive sensing controller from Infineon, part of the PSoC 4 family. It integrates a 32-bit ARM Cortex-M0 CPU with programmable analog and digital peripherals, enabling flexible touch sensing solutions. Housed in a compact 48-QFN (7x7 mm) package, it operates at up to 24 MHz and offers 32 KB flash memory, 4 KB SRAM, and a wide supply voltage range of 1.71V to 5.5V. This device is ideal for human-machine interfaces (HMI) requiring robust capacitive touch, proximity sensing, and low power consumption.

Detailed Technical Specifications

Key Features

• 32-bit ARM Cortex-M0 processor for efficient computation
• Up to 36 CapSense channels with SmartSense auto-tuning
• Low power consumption: 150 μA/MHz active, 1.3 μA deep sleep
• Integrated 12-bit SAR ADC for analog sensing
• Wide operating voltage range (1.71V to 5.5V)
• I2C, SPI, UART serial communication
• Programmable digital blocks (UDB) for custom logic
• Industrial temperature range (-40°C to +85°C)

Target Applications

• Capacitive touch buttons, sliders, and proximity sensors for consumer electronics (e.g., smart home panels, wearable devices)
• Industrial HMIs for 5G base station control interfaces
• Automotive dashboard touch controls (e.g., infotainment systems, climate control)
• Medical devices requiring low-power touch sensing (e.g., patient monitors)
• IoT edge nodes with touch user input

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C20636A-24LTXI. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C20636A-24LTXI 是英飛凌 PSoC 4 系列的高性能 CapSense 電容式感測控制器，整合 32 位元 ARM Cortex-M0 CPU 與可編程類比及數位周邊，提供靈活的觸控感測解決方案。採用緊湊的 48-QFN（7x7 mm）封裝，最高運行頻率 24 MHz，具備 32 KB 快閃記憶體、4 KB SRAM，以及 1.71V 至 5.5V 的寬電源電壓範圍。此元件非常適合需要強大電容觸控、接近感測及低功耗的人機介面（HMI）應用。

詳細技術參數

核心特性

• 32 位元 ARM Cortex-M0 處理器，高效運算
• 最多 36 個 CapSense 通道，支援 SmartSense 自動調諧
• 低功耗：活動模式 150 μA/MHz，深度睡眠 1.3 μA
• 內建 12 位元 SAR ADC，用於類比感測
• 寬工作電壓範圍（1.71V 至 5.5V）
• I2C、SPI、UART 串列通訊
• 可編程數位區塊（UDB）實現自訂邏輯
• 工業級溫度範圍（-40°C 至 +85°C）

典型應用場景

• 消費性電子產品的電容觸控按鍵、滑條及接近感測（例如智慧家居面板、穿戴式裝置）
• 工業 HMI，如 5G 基地台控制介面
• 汽車儀表板觸控控制（例如資訊娛樂系統、空調控制）
• 需要低功耗觸控感測的醫療設備（例如病人監護儀）
• 具觸控輸入的 IoT 邊緣節點

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C20636A-24LTXI 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
