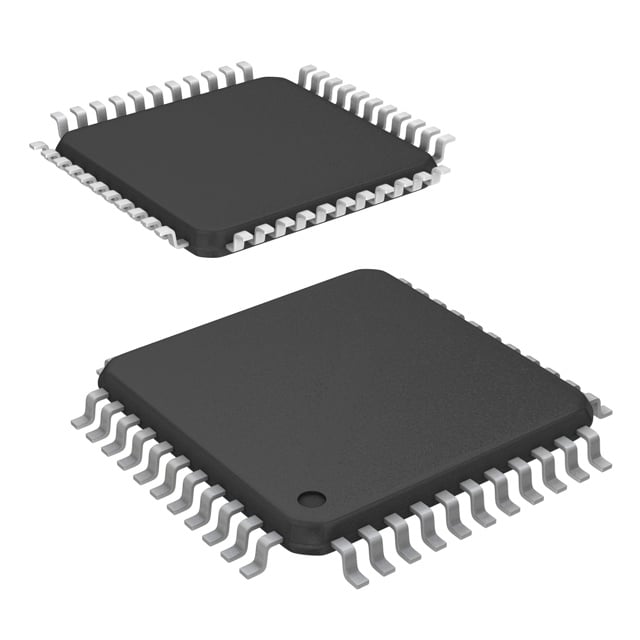

CY8C4146AXI-S443 Infineon MCU | 44-TQFP (10x10) | ARM Cortex-M0+, 64KB Flash

Product Overview

The CY8C4146AXI-S443 is a high-performance 32-bit microcontroller from Infineon's PSoC 4 series, featuring an ARM Cortex-M0+ core. It is designed for embedded control applications requiring low power consumption, rich analog integration, and flexible programmability. Housed in a compact 44-TQFP (10x10 mm) package, this MCU offers a balanced combination of processing power, memory, and peripheral set, making it suitable for a wide range of industrial, consumer, and automotive applications.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with 48 MHz performance
• 64 KB flash and 8 KB SRAM for code and data storage
• Integrated CapSense touch sensing technology
• 12-bit SAR ADC with 1 Msps conversion rate
• Dual DACs (IDAC and VDAC) for analog output
• Wide operating voltage range (1.71 V to 5.5 V)
• Low power modes: Sleep, Deep Sleep, and Hibernate
• Rich communication interfaces: I2C, SPI, UART, LIN
• Up to 36 GPIOs with programmable drive modes
• On-chip debug and programming via SWD

Target Applications

• Industrial control systems (e.g., PLC, motor control)
• Smart home devices (e.g., smart thermostat, lighting control)
• Human-machine interface (HMI) with touch buttons/sliders
• Automotive body electronics (e.g., dashboard control, window lift)
• 5G base station monitoring and control
• Portable medical devices (e.g., blood glucose meter)
• Sensor hubs and data loggers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C4146AXI-S443. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C4146AXI-S443 是英飛凌 PSoC 4 系列的一款高性能 32 位微控制器，採用 ARM Cortex-M0+ 內核。它專為需要低功耗、豐富模擬集成和靈活可編程性的嵌入式控制應用而設計。該 MCU 採用緊湊的 44-TQFP（10x10 mm）封裝，在處理能力、存儲器和外設集之間提供了平衡的組合，適用於廣泛的工業、消費和汽車應用。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，48 MHz 性能
• 64 KB 閃存和 8 KB SRAM，用於代碼和數據存儲
• 集成 CapSense 觸摸感應技術
• 12 位 SAR ADC，轉換速率 1 Msps
• 雙 DAC（IDAC 和 VDAC），用於模擬輸出
• 寬工作電壓範圍（1.71 V 至 5.5 V）
• 低功耗模式：睡眠、深度睡眠和休眠
• 豐富的通信接口：I2C、SPI、UART、LIN
• 最多 36 個 GPIO，可編程驅動模式
• 通過 SWD 進行片上調試和編程

典型應用場景

• 工業控制系統（例如 PLC、電機控制）
• 智能家居設備（例如智能恆溫器、照明控制）
• 帶觸摸按鍵/滑條的人機界面（HMI）
• 汽車車身電子（例如儀表板控制、車窗升降）
• 5G 基站監控與控制
• 便攜式醫療設備（例如血糖儀）
• 傳感器集線器和數據記錄器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C4146AXI-S443 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
