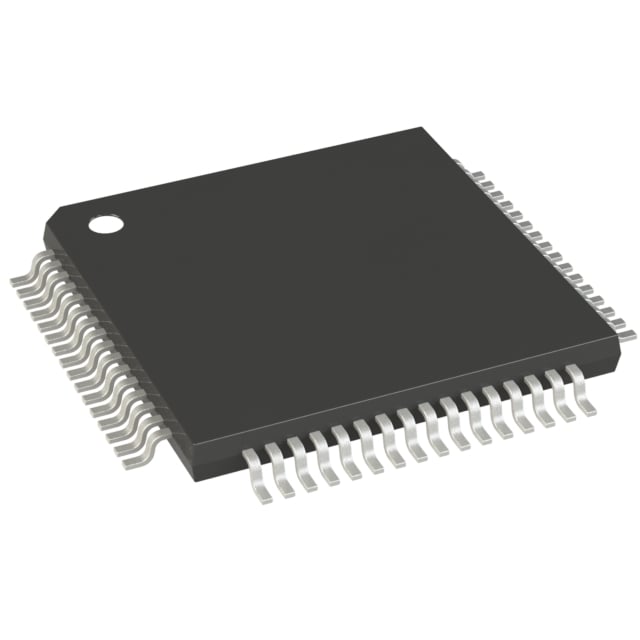

CY8C4146AZA-S455 Infineon MCU | 64-TQFP（10X10） | ARM Cortex-M0+, 32KB Flash

Product Overview

The CY8C4146AZA-S455 is a member of Infineon's PSoC 4 series, featuring an ARM Cortex-M0+ core with 32KB flash and 4KB SRAM. It integrates programmable analog and digital peripherals, making it ideal for embedded control applications. The device operates from 1.71V to 5.5V and supports temperatures from -40°C to +85°C. Housed in a 64-pin TQFP package (10x10mm), it offers up to 36 GPIOs, two I2C/SPI/UART serial communication blocks, a 12-bit SAR ADC, capacitive sensing (CapSense), and four timer/counter/PWM blocks.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with 48 MHz performance
• Integrated programmable analog (opamps, comparators, ADC) and digital (UDBs) blocks
• Capacitive sensing (CapSense) with noise immunity
• Wide operating voltage range (1.71V to 5.5V)
• Low power consumption with multiple sleep modes
• Rich serial communication interfaces (I2C, SPI, UART)
• Up to 36 GPIOs with programmable drive modes
• On-chip debug and programming via SWD

Target Applications

• Industrial control: PLCs, motor control, sensor interfaces
• Consumer electronics: smart home devices, wearables, remote controls
• Automotive: dashboard controllers, lighting, HMI panels
• Medical devices: patient monitors, infusion pumps
• IoT edge nodes: smart sensors, data loggers
• 5G base station: power management, monitoring

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C4146AZA-S455. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C4146AZA-S455 是英飛凌 PSoC 4 系列的一員，採用 ARM Cortex-M0+ 內核，配備 32KB 快閃記憶體和 4KB SRAM。它集成了可編程模擬和數字外設，非常適合嵌入式控制應用。該器件的工作電壓範圍為 1.71V 至 5.5V，溫度範圍為 -40°C 至 +85°C。採用 64 引腳 TQFP 封裝（10x10mm），提供多達 36 個 GPIO、兩個 I2C/SPI/UART 串行通信模塊、一個 12 位 SAR ADC、電容感應（CapSense）和四個定時器/計數器/PWM 模塊。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，48 MHz 性能
• 集成可編程模擬（運算放大器、比較器、ADC）和數字（UDB）模塊
• 電容感應（CapSense），抗干擾能力強
• 寬工作電壓範圍（1.71V 至 5.5V）
• 低功耗，多種睡眠模式
• 豐富的串行通信接口（I2C、SPI、UART）
• 最多 36 個 GPIO，可編程驅動模式
• 片上調試和編程（SWD）

典型應用場景

• 工業控制：PLC、電機控制、傳感器接口
• 消費電子：智能家居設備、可穿戴設備、遙控器
• 汽車電子：儀表盤控制器、照明、HMI 面板
• 醫療設備：病人監護儀、輸液泵
• 物聯網邊緣節點：智能傳感器、數據記錄器
• 5G 基站：電源管理、監控

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C4146AZA-S455 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
