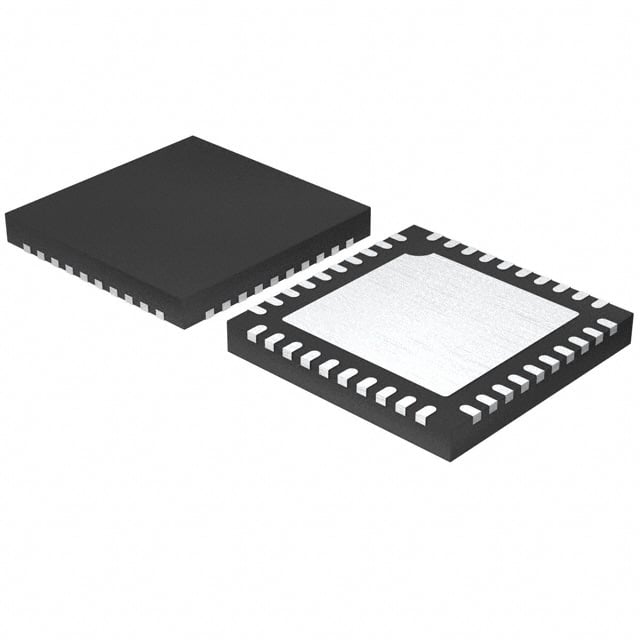

CYPD3125-40LQXI Infineon USB Type-C Controller | 40-QFN (6x6) | USB PD 3.0, CC Logic

Product Overview

The CYPD3125-40LQXI is a highly integrated USB Type-C controller from Infineon, designed for power delivery (PD) and cable detection applications. It supports USB PD 3.0 with Programmable Power Supply (PPS) and is compliant with the latest USB Type-C and PD specifications. The device integrates a 32-bit ARM Cortex-M0 processor, providing flexibility for custom firmware and system integration. Housed in a compact 40-QFN (6x6 mm) package, it is ideal for space-constrained designs in consumer, industrial, and automotive applications.

Detailed Technical Specifications

Key Features

• Compliant with USB Type-C 1.3 and USB PD 3.0 standards
• Integrated ARM Cortex-M0 processor for flexible firmware
• Supports Programmable Power Supply (PPS) for fast charging
• Built-in CC logic for cable orientation and detection
• Integrated VBUS discharge path
• Low power consumption with multiple sleep modes
• Compact 40-QFN (6x6 mm) package for space-saving designs
• Wide operating voltage range (2.7 V to 5.5 V)
• Industrial temperature range (-40°C to +85°C)

Target Applications

• USB Type-C hubs and docking stations
• Power adapters and chargers (e.g., 65W laptop adapters)
• Smartphones and tablets (e.g., flagship Android devices)
• Laptops and ultrabooks (e.g., Dell XPS, MacBook)
• 5G base stations (for power management)
• Automotive infotainment systems (e.g., dashboard USB ports)
• Industrial embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CYPD3125-40LQXI. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CYPD3125-40LQXI 是英飛凌推出的一款高度集成的 USB Type-C 控制器，專為電源傳輸（PD）和線纜檢測應用而設計。它支持 USB PD 3.0 及可編程電源（PPS），符合最新的 USB Type-C 和 PD 規範。該器件集成了 32 位 ARM Cortex-M0 處理器，為自定義固件和系統集成提供了靈活性。採用緊湊的 40-QFN（6x6 mm）封裝，非常適合消費類、工業和汽車應用中的空間受限設計。

詳細技術參數

核心特性

• 符合 USB Type-C 1.3 和 USB PD 3.0 標準
• 集成 ARM Cortex-M0 處理器，支持靈活的固件
• 支持可編程電源（PPS），實現快速充電
• 內置 CC 邏輯，用於線纜方向檢測
• 集成 VBUS 放電路徑
• 低功耗，支持多種休眠模式
• 緊湊的 40-QFN（6x6 mm）封裝，節省空間
• 寬工作電壓範圍（2.7 V 至 5.5 V）
• 工業級溫度範圍（-40°C 至 +85°C）

典型應用場景

• USB Type-C 集線器和擴展塢
• 電源適配器和充電器（例如 65W 筆記本適配器）
• 智能手機和平板電腦（例如旗艦 Android 設備）
• 筆記本電腦和超極本（例如 Dell XPS、MacBook）
• 5G 基站（用於電源管理）
• 汽車信息娛樂系統（例如儀表板 USB 端口）
• 工業嵌入式系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CYPD3125-40LQXI 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
