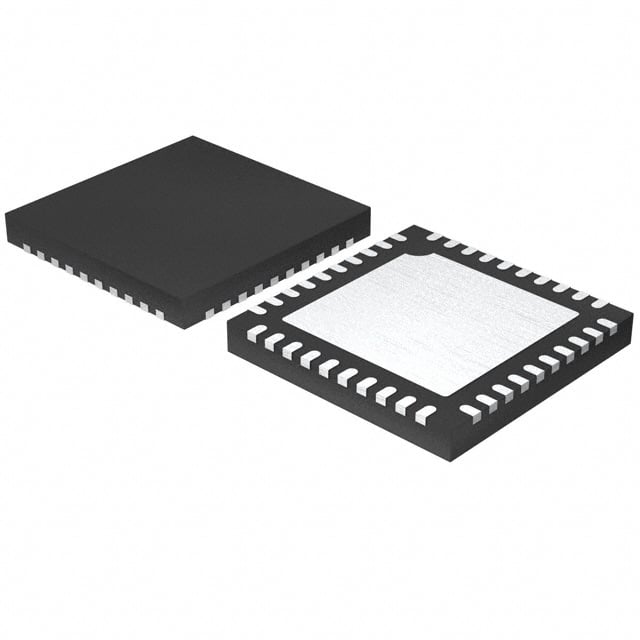

CYPD4226-40LQXI Infineon USB Type-C Controller | 40-QFN (6x6) | USB PD 3.0, Dual Role Port

Product Overview

The CYPD4226-40LQXI is a high-performance USB Type-C controller from Infineon, designed to support USB Power Delivery (PD) 3.0 and Type-C specifications. It integrates a 32-bit ARM Cortex-M0 processor, providing advanced power negotiation and data role management. Housed in a compact 40-QFN (6x6 mm) package, it is ideal for space-constrained applications requiring robust USB-C connectivity.

Detailed Technical Specifications

Key Features

• Compliant with USB Type-C 1.3 and USB PD 3.0 standards
• Supports Dual Role Port (DRP) for both source and sink operation
• Integrated ARM Cortex-M0 for flexible firmware customization
• Built-in VBUS discharge and overvoltage protection
• Low standby power consumption (< 10 µA)
• Supports Alternate Mode (e.g., DisplayPort, Thunderbolt)
• Dead battery support for sink mode
• Configurable through I2C/SPI interface

Target Applications

• 5G base station power management modules
• Automotive dashboard USB-C charging ports
• Industrial embedded systems with USB-C connectivity
• Consumer electronics: laptops, tablets, docking stations
• Power adapters and wall chargers with PD support

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CYPD4226-40LQXI. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CYPD4226-40LQXI 是英飛凌推出的一款高性能 USB Type-C 控制器，支持 USB Power Delivery (PD) 3.0 和 Type-C 規範。它集成了 32 位 ARM Cortex-M0 處理器，提供先進的電源協商和數據角色管理。採用緊湊的 40-QFN（6x6 mm）封裝，非常適合需要強大 USB-C 連接的空間受限應用。

詳細技術參數

核心特性

• 符合 USB Type-C 1.3 和 USB PD 3.0 標準
• 支持雙角色端口（DRP），可作為源或接收端
• 集成 ARM Cortex-M0，便於固件定制
• 內置 VBUS 放電和過壓保護
• 低待機功耗（< 10 µA）
• 支持替代模式（如 DisplayPort、Thunderbolt）
• 支持接收模式下的無電池啟動
• 可通過 I2C/SPI 接口配置

典型應用場景

• 5G 基站電源管理模塊
• 汽車儀表板 USB-C 充電端口
• 帶 USB-C 連接的工業嵌入式系統
• 消費電子：筆記本電腦、平板電腦、擴展塢
• 支持 PD 的電源適配器和牆壁充電器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CYPD4226-40LQXI 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
