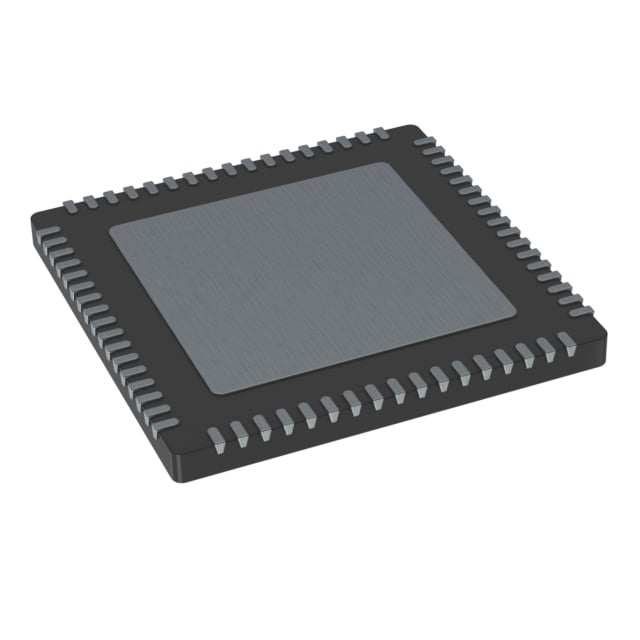

CYPD727268LQXQXQSA1 Infineon USB-C Controller | 68-QFN (8x8) | USB PD 3.1, Dual Role

Product Overview

The CYPD727268LQXQXQSA1 is a high-performance USB Type-C controller from Infineon, designed for advanced power delivery and data role management. It supports USB PD 3.1 with extended power range (EPR) up to 240W, dual-role data (DRP), and integrated dead battery support. Housed in a compact 68-QFN (8x8 mm) package, it is ideal for space-constrained applications requiring robust USB-C connectivity.

Detailed Technical Specifications

Key Features

• Compliant with USB Type-C Rev 2.1 and USB PD 3.1 standards
• Supports Extended Power Range (EPR) up to 240W
• Dual-Role Port (DRP) for flexible data and power roles
• Integrated dead battery support for seamless user experience
• Built-in VBUS and CC FETs for reduced BOM
• Advanced protection: over-voltage, over-current, over-temperature
• Firmware upgradeable via I2C/SPI
• Low standby power consumption

Target Applications

• 5G base stations: Power and data interface for remote radio units
• Automotive dashboards: USB-C connectivity for infotainment and charging
• Industrial PCs: Robust USB-C port for power and data
• Docking stations: Multi-port USB-C hubs with PD
• Power adapters: High-power USB-C chargers up to 240W
• Consumer electronics: Laptops, tablets, and smartphones

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CYPD727268LQXQXQSA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CYPD727268LQXQXQSA1 是英飛凌推出的高性能 USB Type-C 控制器，支援先進的電力傳輸和數據角色管理。它符合 USB PD 3.1 標準，支援擴展功率範圍（EPR）高達 240W，雙角色數據（DRP）以及內置無電池支援。採用緊湊的 68-QFN（8x8 mm）封裝，適用於需要強大 USB-C 連接的空間受限應用。

詳細技術參數

核心特性

• 符合 USB Type-C Rev 2.1 和 USB PD 3.1 標準
• 支援擴展功率範圍（EPR）高達 240W
• 雙角色端口（DRP）實現靈活的數據和電源角色
• 內置無電池支援，提供無縫用戶體驗
• 集成 VBUS 和 CC FET，減少 BOM
• 先進保護：過壓、過流、過溫
• 可通過 I2C/SPI 升級固件
• 低待機功耗

典型應用場景

• 5G 基站：遠程射頻單元的電源和數據接口
• 汽車儀表板：信息娛樂和充電的 USB-C 連接
• 工業電腦：強大的 USB-C 端口用於電源和數據
• 擴展塢：多端口 USB-C 集線器支援 PD
• 電源適配器：高達 240W 的高功率 USB-C 充電器
• 消費電子：筆記本電腦、平板電腦和智能手機

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CYPD727268LQXQXQSA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
