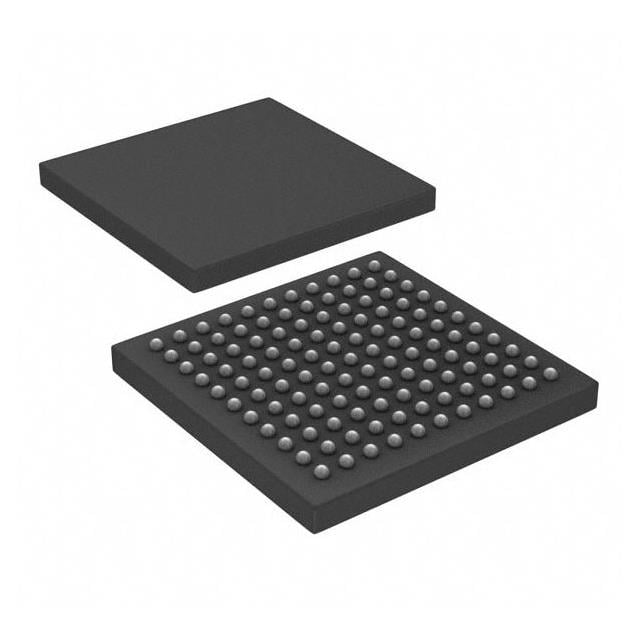

CYUSB2014-BZXI Infineon USB Controller | 121-FBGA (10x10) | USB 3.0, 32-bit ARM926EJ-S

Product Overview

The CYUSB2014-BZXI is a high-performance USB 3.0 peripheral controller from Infineon, designed for applications requiring high-speed data transfer and flexible connectivity. Housed in a compact 121-FBGA (10x10 mm) package, it integrates a 32-bit ARM926EJ-S processor running at up to 200 MHz, providing ample processing power for complex protocols and data management. The device supports USB 3.0 SuperSpeed (5 Gbps) and is backward compatible with USB 2.0/1.1. It features a programmable I/O subsystem, including GPIOs, SPI, I2C, UART, and a 16-bit external bus interface, making it ideal for bridging, data acquisition, and embedded systems.

Detailed Technical Specifications

Key Features

• USB 3.0 SuperSpeed (5 Gbps) with backward compatibility to USB 2.0/1.1
• Integrated 32-bit ARM926EJ-S processor for flexible firmware implementation
• Large on-chip SRAM (512 KB) for data buffering and code execution
• Rich peripheral set: SPI, I2C, UART, GPIOs, and 16-bit external bus
• Low power consumption with multiple power modes
• Industrial temperature range (-40°C to +85°C)
• Compact 121-FBGA package (10x10 mm) for space-constrained designs

Target Applications

• 5G base station control and monitoring interfaces
• Automotive dashboard and infotainment systems
• Industrial automation and data acquisition modules
• Medical imaging and diagnostic equipment
• High-speed data loggers and test equipment
• Embedded systems requiring USB connectivity

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CYUSB2014-BZXI. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CYUSB2014-BZXI 是英飛凌推出的一款高性能 USB 3.0 外設控制器，專為需要高速數據傳輸和靈活連接的應用而設計。它採用緊湊的 121-FBGA（10x10 mm）封裝，集成了一個運行頻率高達 200 MHz 的 32 位 ARM926EJ-S 處理器，為複雜協議和數據管理提供充足的處理能力。該器件支持 USB 3.0 SuperSpeed（5 Gbps），並向下兼容 USB 2.0/1.1。它配備了可編程 I/O 子系統，包括 GPIO、SPI、I2C、UART 和 16 位外部總線接口，非常適合橋接、數據採集和嵌入式系統。

詳細技術參數

核心特性

• USB 3.0 SuperSpeed（5 Gbps），向下兼容 USB 2.0/1.1
• 集成 32 位 ARM926EJ-S 處理器，支持靈活的固件實現
• 大容量片上 SRAM（512 KB），用於數據緩衝和代碼執行
• 豐富的外設：SPI、I2C、UART、GPIO 和 16 位外部總線
• 低功耗設計，支持多種功耗模式
• 工業級溫度範圍（-40°C 至 +85°C）
• 緊湊的 121-FBGA 封裝（10x10 mm），適合空間受限的設計

典型應用場景

• 5G 基站控制與監控接口
• 汽車儀表盤與信息娛樂系統
• 工業自動化與數據採集模塊
• 醫療成像與診斷設備
• 高速數據記錄儀與測試設備
• 需要 USB 連接的嵌入式系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CYUSB2014-BZXI 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
