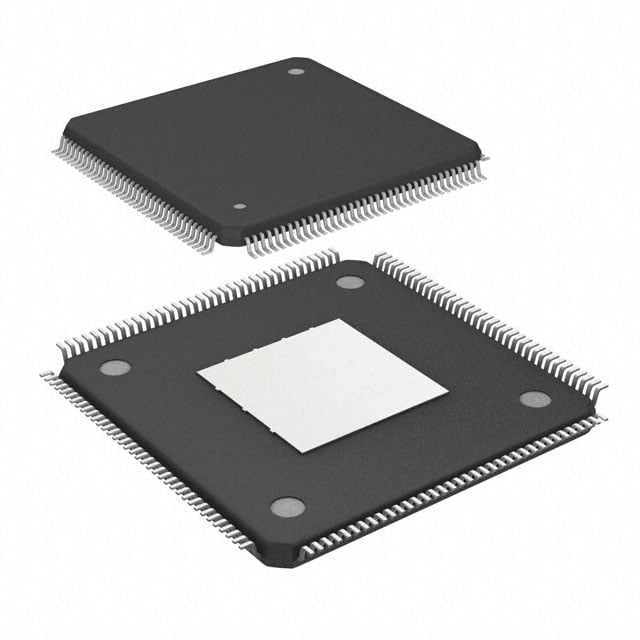

FT1161128F66HLAAXP Infineon MCU | PG-LQFP-176-2 | 128KB Flash, 66MHz

Product Overview

The FT1161128F66HLAAXP is a high-performance 32-bit microcontroller from Infineon's XC2000 family, designed for real-time control applications. It features a C166S V2 core running at 66 MHz, 128 KB of Flash memory, and 12 KB of RAM. The device is housed in a PG-LQFP-176-2 package, offering 176 pins for extensive I/O connectivity. It integrates advanced peripherals including multiple CAN, LIN, and SPI interfaces, as well as a 12-bit ADC with up to 16 channels. This MCU is optimized for automotive and industrial applications requiring high reliability and deterministic behavior.

Detailed Technical Specifications

Key Features

• High-performance C166S V2 core with single-cycle instruction execution
• Up to 66 MHz operation for real-time control
• 128 KB on-chip Flash with ECC support
• 12 KB SRAM for data and stack
• Rich peripheral set: MultiCAN, LIN, SPI, I2C, UART
• 12-bit ADC with up to 16 analog inputs
• Flexible PWM generation with CCU6 and GPTA
• Wide operating voltage range (3.0V to 5.5V)
• Extended temperature range (-40°C to +125°C)
• 176-pin LQFP package for compact designs

Target Applications

The FT1161128F66HLAAXP is ideal for automotive and industrial applications such as:

• Engine control units (ECU) for gasoline and diesel engines
• Transmission control modules
• Electric power steering (EPS) systems
• 5G base station power management and control
• Industrial motor drives and inverters
• Automotive dashboard and body control modules
• Battery management systems (BMS) for EVs
• Robotics and servo control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for FT1161128F66HLAAXP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

FT1161128F66HLAAXP 是英飛凌 XC2000 系列的高性能 32 位微控制器，專為實時控制應用設計。它採用 C166S V2 內核，運行頻率 66 MHz，配備 128 KB 閃存和 12 KB RAM。器件採用 PG-LQFP-176-2 封裝，提供 176 個引腳以實現豐富的 I/O 連接。它集成了多個 CAN、LIN 和 SPI 接口以及 12 位 ADC（最多 16 通道）。該 MCU 針對需要高可靠性和確定性行為的汽車和工業應用進行了優化。

詳細技術參數

核心特性

• 高性能 C166S V2 內核，單週期指令執行
• 最高 66 MHz 操作，適用於實時控制
• 128 KB 片上閃存，支持 ECC
• 12 KB SRAM 用於數據和堆棧
• 豐富的外設：MultiCAN、LIN、SPI、I2C、UART
• 12 位 ADC，最多 16 個模擬輸入
• 使用 CCU6 和 GPTA 的靈活 PWM 生成
• 寬工作電壓範圍 (3.0V 至 5.5V)
• 擴展溫度範圍 (-40°C 至 +125°C)
• 176 引腳 LQFP 封裝，適合緊湊設計

典型應用場景

FT1161128F66HLAAXP 非常適合汽車和工業應用，例如：

• 汽油和柴油發動機的發動機控制單元 (ECU)
• 變速箱控制模塊
• 電動助力轉向 (EPS) 系統
• 5G 基站電源管理和控制
• 工業電機驅動器和逆變器
• 汽車儀表板和車身控制模塊
• 電動汽車電池管理系統 (BMS)
• 機器人和伺服控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 FT1161128F66HLAAXP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
