IR2118PBF Infineon Gate Driver IC | 8-PDIP | 600V, High & Low Side

Product Overview

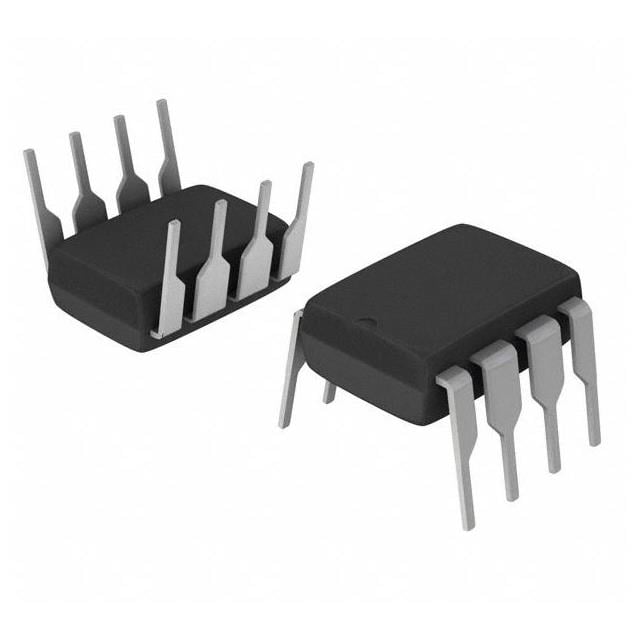

The IR2118PBF is a high-voltage, high-speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Manufactured by Infineon Technologies, this device is designed for applications requiring high-side switching with bootstrap operation. It features a floating channel designed for bootstrap operation up to +600V, and is capable of driving a wide range of power devices in half-bridge, full-bridge, and three-phase configurations. The IR2118PBF comes in a compact 8-PDIP package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation up to +600V
• High-side and low-side gate drive outputs
• 2A peak output current capability
• Under-voltage lockout (UVLO) for both VCC and VBS
• 3.3V and 5V logic input compatible
• Matched propagation delay for both channels
• Shoot-through prevention logic
• RoHS compliant

Target Applications

The IR2118PBF is ideal for a variety of power conversion and motor control applications. Specific examples include:

• 5G base station power supplies: DC-DC converters and PFC stages
• Automotive dashboard motor drivers: BLDC motor control for HVAC, fans, and pumps
• Industrial motor drives: Variable frequency drives (VFDs) for pumps and conveyors
• Solar inverters: Grid-tie and off-grid inverter stages
• Home appliances: Washing machine and refrigerator compressor drives

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IR2118PBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
