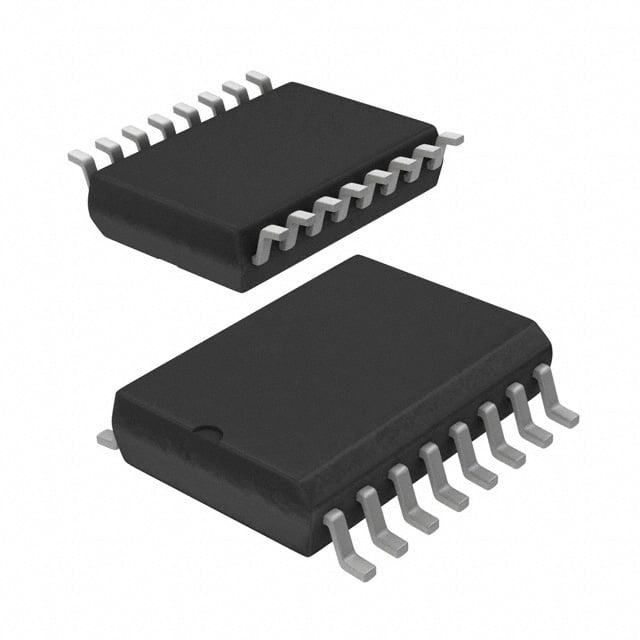

IR2125STRPBF Infineon Gate Driver IC | 16-SOIC | 500mA Peak, 12-20V Supply

Product Overview

The IR2125STRPBF is a high-voltage, high-speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600V.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation up to 600V
• Tolerant to negative transient voltage up to -50V on VS pin
• Gate drive supply range from 12V to 20V
• Undervoltage lockout for both VCC and VBS
• 3.3V, 5V, and 15V logic input compatible
• Matched propagation delay for both channels
• Outputs in phase with inputs
• RoHS compliant

Target Applications

• Motor drives for industrial automation (e.g., servo drives for CNC machines)
• Power inverters for solar energy systems (e.g., string inverters)
• Switched-mode power supplies (SMPS) for telecom equipment (e.g., 5G base station power modules)
• Battery chargers for electric vehicles (e.g., onboard chargers)
• Home appliance motor control (e.g., inverter air conditioner compressors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IR2125STRPBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
