IR2136STRPBF Infineon Gate Driver IC | 28-SOIC | 600V, 3-Phase

Product Overview

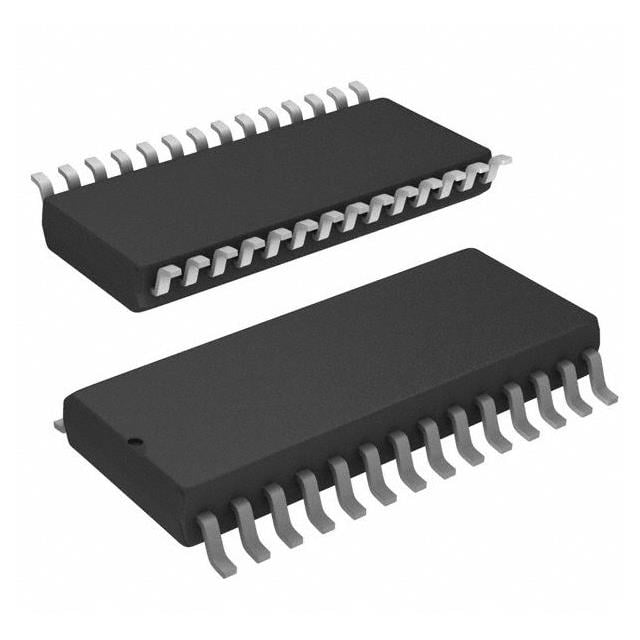

The IR2136STRPBF is a high-voltage, high-speed power MOSFET and IGBT gate driver IC from Infineon Technologies. It is designed for three-phase applications and features three independent high-side and low-side output channels. The device operates with a supply voltage up to 20V and can handle bootstrap voltages up to 600V. It is housed in a 28-pin SOIC package, making it suitable for compact designs. The IR2136STRPBF integrates protection features such as undervoltage lockout (UVLO) for both high and low-side drivers, and a shutdown input for fault management.

Detailed Technical Specifications

Key Features

• Three independent high-side and low-side drivers
• Bootstrap operation up to 600V
• Matched propagation delays for all channels
• Undervoltage lockout for both VCC and VBS
• Shutdown input for fault protection
• Cross-conduction prevention logic
• CMOS Schmitt-triggered inputs
• Outputs tolerant to negative transients

Target Applications

The IR2136STRPBF is ideal for three-phase motor drives, inverters, and power supplies. Specific applications include: 5G base station power supplies, industrial motor drives for conveyor belts, HVAC compressor drives, electric vehicle (EV) charging stations, and servo drives for robotics. It is also used in UPS systems and solar inverters.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IR2136STRPBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
