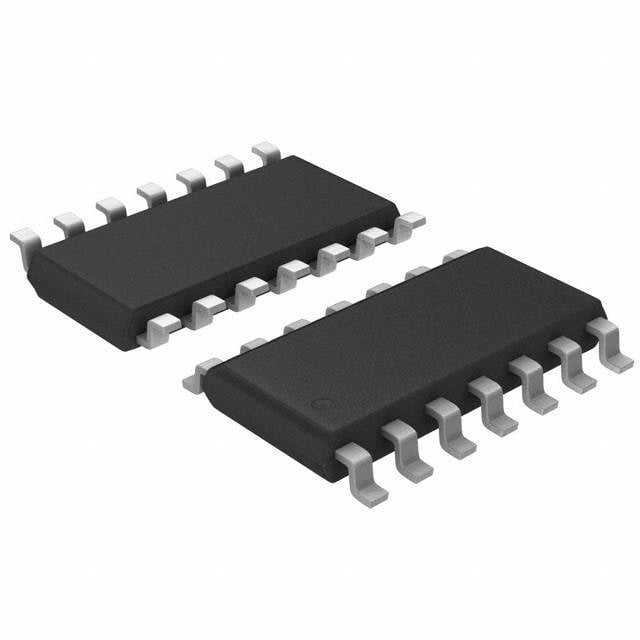

IRS2453DSTRPBF Infineon Half-Bridge Gate Driver | 14-SOIC | 600V, 0.5A

Product Overview

The IRS2453DSTRPBF is a high-voltage, high-speed power MOSFET and IGBT gate driver with independent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation up to 600V
• Tolerant to negative transient voltage up to -50V
• Gate drive supply range from 10V to 20V
• 3.3V, 5V, and 15V logic input compatible
• Under-voltage lockout for both channels
• Matched propagation delay for both channels
• Cross-conduction prevention logic
• High-side output in phase with input (HIN)
• Low-side output in phase with input (LIN)

Target Applications

• Half-bridge and full-bridge converters for 5G base station power supplies
• DC-DC converters for automotive dashboard displays
• Motor drives for industrial automation
• Class D audio amplifiers
• Uninterruptible power supplies (UPS)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IRS2453DSTRPBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
