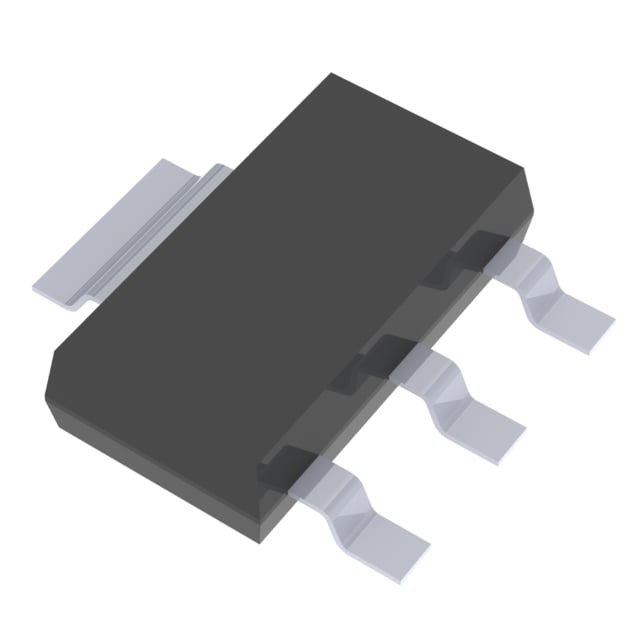

ITS4200SMEPHUMA1 Infineon Power Switch | PG-SOT223-4 | 0.7A, 5-34V

Product Overview

The ITS4200SMEPHUMA1 is a high-side power switch from Infineon, designed for automotive and industrial applications. It integrates a vertical N-channel power MOSFET with charge pump and protection features in a compact PG-SOT223-4 package. The device provides a single channel output with a typical on-state resistance of 200 mΩ, capable of delivering up to 0.7 A continuous current. It operates over a wide input voltage range from 5 V to 34 V, making it suitable for 12 V and 24 V systems. The ITS4200SMEPHUMA1 includes built-in protection against overtemperature, overcurrent, and short-circuit conditions, ensuring reliable operation in harsh environments.

Detailed Technical Specifications

Key Features

• Single-channel high-side switch with integrated N-channel power MOSFET
• Wide input voltage range: 5 V to 34 V
• Low on-state resistance: 200 mΩ typical
• Output current capability: 0.7 A continuous
• Protection: overtemperature, overcurrent, short-circuit
• Diagnostic feedback via open-drain fault flag
• Very low standby current (< 5 μA)
• ESD protection: 2 kV (HBM)
• Automotive qualified (AEC-Q100)
• RoHS compliant and halogen-free

Target Applications

• Automotive body control modules (e.g., dashboard lighting, seat control)
• Industrial PLC output modules
• 5G base station power distribution
• LED lighting control in automotive and industrial systems
• Resistive, inductive, and capacitive loads
• Replacement of relays and discrete MOSFET solutions

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ITS4200SMEPHUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ITS4200SMEPHUMA1 是英飛凌推出的一款高側電源開關，專為汽車和工業應用設計。它將垂直 N 溝道功率 MOSFET、電荷泵和保護功能集成在緊湊的 PG-SOT223-4 封裝中。該器件提供單通道輸出，典型導通電阻為 200 mΩ，可提供高達 0.7 A 的連續電流。它支持 5 V 至 34 V 的寬輸入電壓範圍，適用於 12 V 和 24 V 系統。ITS4200SMEPHUMA1 包含過溫、過流和短路保護功能，確保在惡劣環境中可靠運行。

詳細技術參數

核心特性

• 單通道高側開關，集成 N 溝道功率 MOSFET
• 寬輸入電壓範圍：5 V 至 34 V
• 低導通電阻：典型值 200 mΩ
• 輸出電流能力：0.7 A 連續
• 保護：過溫、過流、短路
• 通過開漏故障標誌提供診斷反饋
• 極低待機電流（< 5 μA）
• ESD 保護：2 kV（HBM）
• 通過汽車級認證（AEC-Q100）
• 符合 RoHS 標準且無滷素

典型應用場景

• 汽車車身控制模塊（例如儀表板照明、座椅控制）
• 工業 PLC 輸出模塊
• 5G 基站電源分配
• 汽車和工業系統中的 LED 照明控制
• 電阻性、電感性和電容性負載
• 替代繼電器和離散 MOSFET 方案

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ITS4200SMEPHUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
