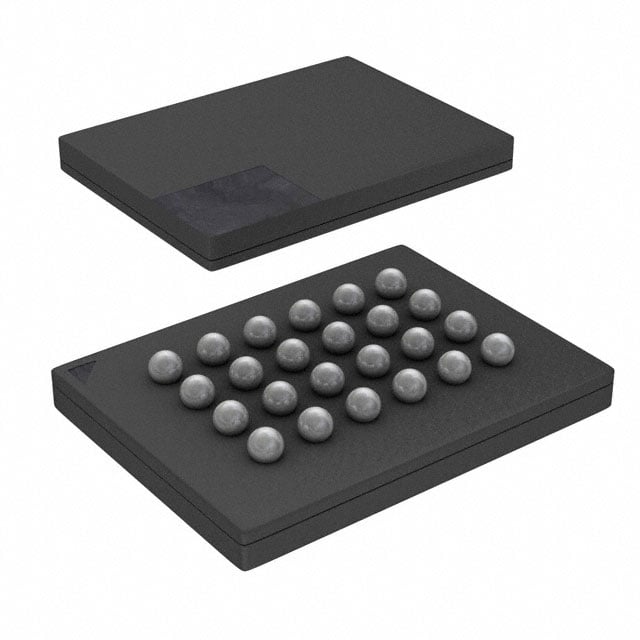

S25FL128SAGBHIZ00 Infineon NOR Flash | 24-BGA(6x8) | 128Mb, SPI, 133MHz

Product Overview

The S25FL128SAGBHIZ00 is a 128Mb (16MB) NOR Flash memory device from Infineon, designed for high-performance embedded applications. It features a SPI interface with clock speeds up to 133MHz, supporting Single, Dual, Quad, and QPI I/O modes. Packaged in a compact 24-ball BGA (6x8mm), it offers a reliable and space-saving solution for code storage and data logging. The device operates over a wide temperature range (-40°C to +85°C) and is ideal for automotive, industrial, and networking applications.

Detailed Technical Specifications

Key Features

• High-speed SPI interface up to 133 MHz
• Quad and QPI modes for enhanced throughput
• Uniform 4 KB sectors for flexible erase granularity
• Low power consumption: 25 mA active read, 5 μA standby
• Advanced security features: OTP, password protection, and serial number
• RoHS compliant and halogen-free

Target Applications

• 5G base stations: code storage for FPGA configuration and boot code
• Automotive dashboard: firmware storage for infotainment and instrument clusters
• Industrial PLCs: program memory for real-time control
• Networking routers: boot loader and OS image storage
• IoT gateways: secure data logging and firmware updates

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL128SAGBHIZ00. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL128SAGBHIZ00 是英飛凌推出的128Mb（16MB）NOR Flash存儲器，專為高性能嵌入式應用設計。它採用SPI接口，時鐘速度高達133MHz，支持單、雙、四線及QPI I/O模式。器件採用緊湊的24-ball BGA（6x8mm）封裝，為代碼存儲和數據記錄提供可靠且節省空間的解決方案。工作溫度範圍寬（-40°C至+85°C），適用於汽車、工業和網絡應用。

詳細技術參數

核心特性

• 高速SPI接口，最高133 MHz
• 四線和QPI模式，提高吞吐量
• 均勻4 KB扇區，靈活擦除粒度
• 低功耗：25 mA 有效讀取，5 μA 待機
• 高級安全功能：OTP、密碼保護和序列號
• 符合RoHS標準，無鹵素

典型應用場景

• 5G基站：FPGA配置和啟動代碼的存儲
• 汽車儀表盤：信息娛樂和儀表組的固件存儲
• 工業PLC：實時控制的程序存儲器
• 網絡路由器：引導加載程序和操作系統鏡像存儲
• 物聯網網關：安全數據記錄和固件更新

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL128SAGBHIZ00 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
