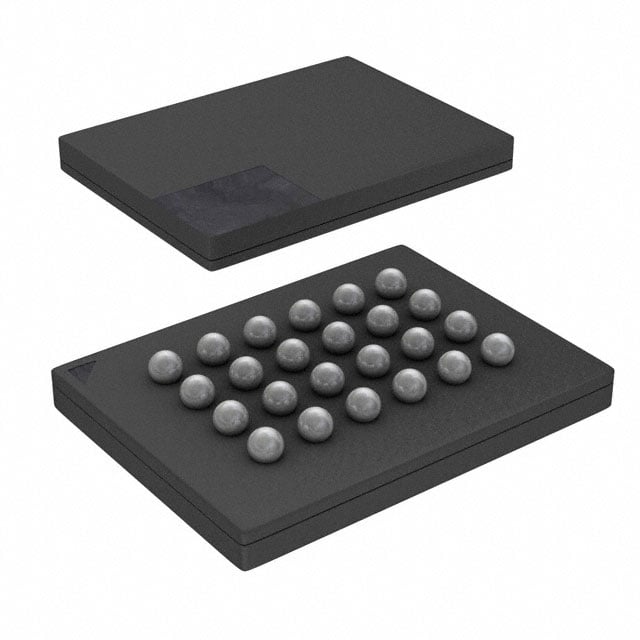

S25FL256SAGBHVD00 Infineon NOR Flash | 24-BGA (6x8) | 256Mb, 3V, SPI

Product Overview

The Infineon S25FL256SAGBHVD00 is a 256Mb (32MB) NOR Flash memory device in a compact 24-ball BGA (6x8mm) package. It operates at a supply voltage of 2.7V to 3.6V and supports SPI (Serial Peripheral Interface) with multi-I/O capabilities including Dual and Quad SPI. This device is designed for high-performance embedded systems requiring fast read speeds and reliable data storage.

Detailed Technical Specifications

Key Features

• High-speed SPI interface with clock frequency up to 133 MHz
• Dual/Quad SPI for enhanced read throughput
• Flexible sector architecture: 4 kB and 64 kB sectors
• Low power consumption: active read current 25 mA (typical), standby 50 µA
• Advanced security features: OTP area, hardware write protection
• RoHS compliant and halogen-free

Target Applications

• 5G base stations: code storage for baseband processors
• Automotive dashboards: firmware storage for infotainment systems
• Industrial IoT: data logging and configuration storage
• Networking equipment: boot code for routers and switches
• Smart meters: firmware updates and parameter storage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL256SAGBHVD00. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S25FL256SAGBHVD00 是一款 256Mb（32MB）NOR 快閃記憶體，採用緊湊的 24 球 BGA（6x8mm）封裝。工作電壓範圍為 2.7V 至 3.6V，支援 SPI（串行外設接口）以及雙/四 SPI 多 I/O 模式。該器件專為需要快速讀取速度和可靠數據存儲的高性能嵌入式系統設計。

詳細技術參數

核心特性

• 高速 SPI 接口，時鐘頻率最高 133 MHz
• 雙/四 SPI 模式提升讀取吞吐量
• 靈活的扇區結構：4 kB 和 64 kB 扇區
• 低功耗：典型讀取電流 25 mA，待機 50 µA
• 高級安全功能：OTP 區域、硬件寫保護
• 符合 RoHS 標準，無鹵素

典型應用場景

• 5G 基站：基帶處理器的代碼存儲
• 汽車儀表盤：信息娛樂系統的固件存儲
• 工業物聯網：數據記錄和配置存儲
• 網絡設備：路由器和交換機的啟動代碼
• 智能電錶：固件更新和參數存儲

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL256SAGBHVD00 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
