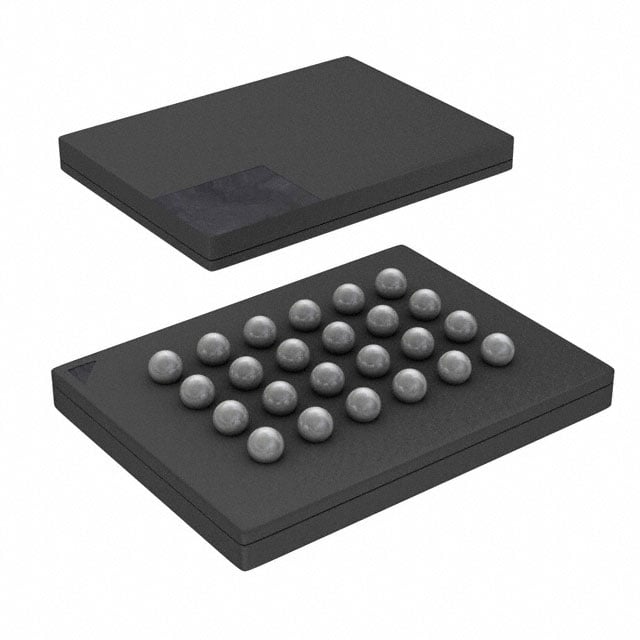

S25FL512SAGBHI313 Infineon NOR Flash | 24-BGA(6X8) | 512Mb, SPI, 133MHz

Product Overview

The S25FL512SAGBHI313 is a 512Mb (64MB) NOR Flash memory device from Infineon, designed for high-performance embedded applications. It features a SPI interface with support for Single, Dual, Quad, and QPI modes, enabling fast read and write operations. The device operates at a voltage range of 2.7V to 3.6V and offers a clock frequency up to 133MHz. Packaged in a compact 24-ball BGA (6x8mm), it is ideal for space-constrained designs requiring high-density non-volatile storage.

Detailed Technical Specifications

Key Features

• High-density 512Mb NOR Flash with fast read performance
• Multi-I/O SPI (Single, Dual, Quad, QPI) for flexible bus width
• Low power consumption with deep power-down mode
• Uniform 64KB blocks for efficient erase management
• Advanced security features: OTP, block protection, and serial number
• Industrial temperature range (-40°C to +85°C)
• RoHS compliant and lead-free

Target Applications

• 5G base stations: code storage and boot memory for baseband processors
• Automotive dashboard: firmware storage for infotainment and instrument clusters
• Industrial IoT: data logging and configuration storage in smart sensors
• Networking equipment: switch and router firmware storage
• Medical devices: program memory for portable diagnostic equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL512SAGBHI313. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL512SAGBHI313 是英飛凌推出的 512Mb（64MB）NOR Flash 存儲器，專為高性能嵌入式應用設計。它支持 SPI 接口，包括單、雙、四線及 QPI 模式，可實現快速讀寫操作。器件工作電壓範圍為 2.7V 至 3.6V，最高時鐘頻率達 133MHz。採用緊湊的 24 球 BGA（6x8mm）封裝，適合空間受限且需要高密度非易失性存儲的設計。

詳細技術參數

核心特性

• 高密度 512Mb NOR Flash，快速讀取性能
• 多 I/O SPI（單、雙、四線、QPI）靈活總線寬度
• 低功耗，支持深度掉電模式
• 均勻 64KB 塊，高效擦除管理
• 高級安全特性：OTP、塊保護、序列號
• 工業級溫度範圍（-40°C 至 +85°C）
• 符合 RoHS 標準，無鉛

典型應用場景

• 5G 基站：基帶處理器的代碼存儲和啟動內存
• 汽車儀表盤：信息娛樂和儀表組的固件存儲
• 工業物聯網：智能傳感器的數據記錄和配置存儲
• 網絡設備：交換機和路由器的固件存儲
• 醫療設備：便攜診斷設備的程序內存

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL512SAGBHI313 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
