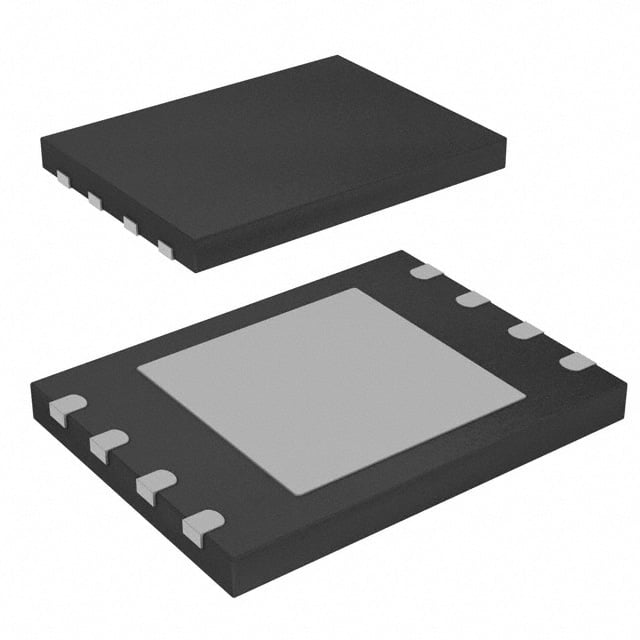

S25HL512TDPNHB010 Infineon NOR Flash | 8-WSON(6x8) | 512Mb, 166MHz, 1.8V

Product Overview

The S25HL512TDPNHB010 is a high-performance 512Mb (64MB) NOR Flash memory device from Infineon's SEMPER™ series. It operates at 1.8V and supports both SPI and Dual/Quad SPI interfaces, delivering read speeds up to 166MHz (DDR). Packaged in a compact 8-WSON (6x8mm) with 8 pins, it is designed for reliable code storage and data logging in automotive, industrial, and networking applications. The device features EnduraFlex™ architecture for enhanced endurance and data retention, making it suitable for safety-critical systems.

Detailed Technical Specifications

Key Features

• High-speed read: 166 MHz DDR with 400 MB/s throughput
• EnduraFlex™: Configurable partition for high endurance (up to 1M cycles) or long retention (20 years)
• Advanced security: OTP, CRC, ECC, and hardware write protection
• Low power: Active read 25 mA, standby 50 µA
• Automotive grade: AEC-Q100 qualified, PPAP support
• Compatible with JEDEC SFDP and common Flash drivers

Target Applications

• 5G base stations: Code shadowing and boot firmware
• Automotive ADAS: Radar and camera module configuration
• Industrial PLC: Program storage and data logging
• Smart meters: Firmware updates and event logging
• Networking switches: Boot code and packet buffer

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25HL512TDPNHB010. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25HL512TDPNHB010 是英飛凌 SEMPER™ 系列的一款高性能 512Mb（64MB）NOR Flash 存儲器。它工作在 1.8V 電壓下，支持 SPI、Dual SPI 和 Quad SPI 接口，讀取速度高達 166MHz（DDR）。採用緊湊的 8-WSON（6x8mm）封裝，專為汽車、工業和網絡應用中的可靠代碼存儲和數據記錄而設計。該器件採用 EnduraFlex™ 架構，具有增強的耐久性和數據保持能力，適用於安全關鍵系統。

詳細技術參數

核心特性

• 高速讀取：166 MHz DDR，吞吐量 400 MB/s
• EnduraFlex™：可配置分區，實現高耐久性（高達 1M 次）或長數據保持（20 年）
• 先進安全：OTP、CRC、ECC 和硬件寫保護
• 低功耗：主動讀取 25 mA，待機 50 µA
• 汽車級：AEC-Q100 認證，支持 PPAP
• 兼容 JEDEC SFDP 和常見 Flash 驅動

典型應用場景

• 5G 基站：代碼影子存儲和啟動固件
• 汽車 ADAS：雷達和攝像頭模塊配置
• 工業 PLC：程序存儲和數據記錄
• 智能電錶：固件更新和事件記錄
• 網絡交換機：啟動代碼和數據包緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25HL512TDPNHB010 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
