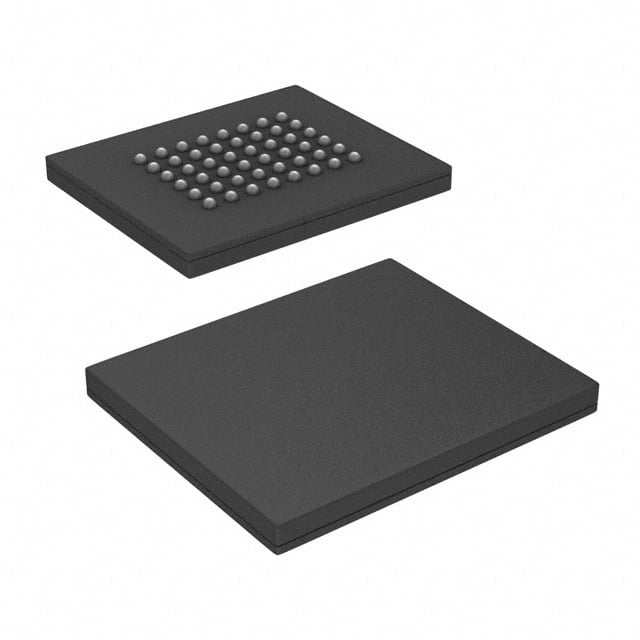

S29AL008J70BFN020 Infineon NOR Flash | 48-FBGA (8.15x6.15) | 8Mb, 70ns

Product Overview

The S29AL008J70BFN020 is a 8 Megabit (1 Mbyte) CMOS 3.0 Volt-only, Page Mode Flash memory device manufactured by Infineon (formerly Cypress). It is organized as 1,048,576 bytes or 524,288 words of 16 bits each. The device operates with a single 2.7V to 3.6V power supply, eliminating the need for a separate programming voltage. It features a 70ns access time and is housed in a compact 48-ball FBGA package (8.15mm x 6.15mm). The S29AL008J70BFN020 is designed for high-performance embedded applications requiring fast read and program operations.

Detailed Technical Specifications

Key Features

• Single 3.0V power supply for read, program, and erase operations
• Page Mode read operation: 8-word page for high-speed random access
• Flexible sector architecture: 16 sectors of 64 Kbytes each
• Unlock Bypass Program command for faster programming
• Hardware and software write protection
• Low power consumption: 20 mA active read current, 1 µA standby
• JEDEC standard pinout and command set

Target Applications

The S29AL008J70BFN020 is ideal for a wide range of embedded applications requiring reliable non-volatile memory. Specific examples include:

• 5G base stations: for boot code and configuration storage
• Automotive dashboards: for firmware and calibration data
• Industrial PLCs: for program storage and data logging
• Networking equipment: routers and switches for boot code
• Medical devices: patient monitoring systems for firmware

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S29AL008J70BFN020. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S29AL008J70BFN020 是英飛凌（原賽普拉斯）生產的 8 兆位（1 兆字節）CMOS 3.0 伏特僅頁模式閃存器件。它組織為 1,048,576 字節或 524,288 個 16 位字。該器件在單一 2.7V 至 3.6V 電源下工作，無需單獨的編程電壓。它具有 70ns 的訪問時間，並採用緊湊的 48 球 FBGA 封裝（8.15mm x 6.15mm）。S29AL008J70BFN020 專為需要快速讀取和編程操作的高性能嵌入式應用而設計。

詳細技術參數

核心特性

• 單一 3.0V 電源用於讀取、編程和擦除操作
• 頁面模式讀取操作：8 字頁面實現高速隨機訪問
• 靈活的扇區架構：16 個扇區，每個 64 Kbytes
• 解鎖旁路編程命令，實現更快的編程
• 硬件和軟件寫保護
• 低功耗：20 mA 有效讀取電流，1 µA 待機
• JEDEC 標準引腳輸出和命令集

典型應用場景

S29AL008J70BFN020 非常適合需要可靠非易失性存儲器的各種嵌入式應用。具體示例包括：

• 5G 基站：用於啟動代碼和配置存儲
• 汽車儀表板：用於固件和校準數據
• 工業 PLC：用於程序存儲和數據記錄
• 網絡設備：路由器和交換機的啟動代碼
• 醫療設備：病人監護系統的固件

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S29AL008J70BFN020 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
