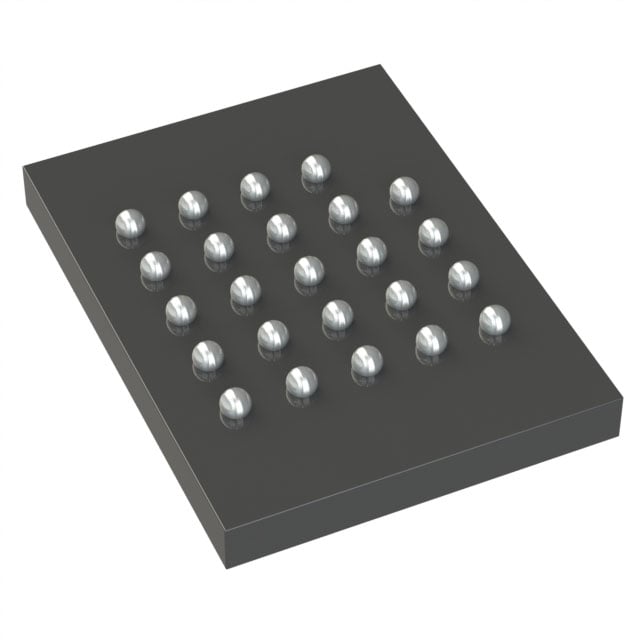

S70FS01GSDSBHM210 Infineon NOR Flash | 24-BGA(8x6) | 1Gb, 166MHz, 1.8V

Product Overview

The Infineon S70FS01GSDSBHM210 is a high-performance 1Gb (128MB) NOR Flash memory device designed for demanding applications requiring fast read speeds and reliable data storage. Housed in a compact 24-ball BGA (8x6mm) package, it operates at a voltage range of 1.7V to 1.95V (typical 1.8V) and supports a maximum clock frequency of 166MHz in Quad SPI mode. This device is part of Infineon's SEMPER™ Flash family, known for its robustness and endurance in automotive and industrial environments.

Detailed Technical Specifications

Key Features

• High-speed Quad SPI interface with 166MHz clock for fast read/write operations
• Low power consumption with deep power-down mode
• Advanced sector protection and security features
• Supports XIP (eXecute In Place) for code shadowing
• Built-in ECC for enhanced data reliability
• Automotive-grade temperature range (-40°C to +105°C)
• Compliant with AEC-Q100 standard

Target Applications

• 5G base stations: for firmware storage and fast boot
• Automotive advanced driver-assistance systems (ADAS): for code execution and data logging
• Infotainment systems: for map data and multimedia storage
• Industrial IoT gateways: for secure firmware updates
• Smart meters: for data logging and configuration

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S70FS01GSDSBHM210. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S70FS01GSDSBHM210 是一款高性能 1Gb（128MB）NOR Flash 存儲器件，專為需要快速讀取速度和可靠數據存儲的應用而設計。它採用緊湊的 24 球 BGA（8x6mm）封裝，工作電壓範圍為 1.7V 至 1.95V（典型 1.8V），在 Quad SPI 模式下支持最高 166MHz 的時鐘頻率。該器件屬於英飛凌 SEMPER™ Flash 系列，以其在汽車和工業環境中的魯棒性和耐用性而聞名。

詳細技術參數

核心特性

• 高速 Quad SPI 接口，166MHz 時鐘，實現快速讀寫操作
• 低功耗，支持深度掉電模式
• 先進的扇區保護和安全功能
• 支持 XIP（就地執行）用於代碼影子
• 內置 ECC 增強數據可靠性
• 汽車級溫度範圍（-40°C 至 +105°C）
• 符合 AEC-Q100 標準

典型應用場景

• 5G 基站：用於固件存儲和快速啟動
• 汽車高級駕駛輔助系統（ADAS）：用於代碼執行和數據記錄
• 信息娛樂系統：用於地圖數據和多媒體存儲
• 工業物聯網網關：用於安全固件更新
• 智能電表：用於數據記錄和配置

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S70FS01GSDSBHM210 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
