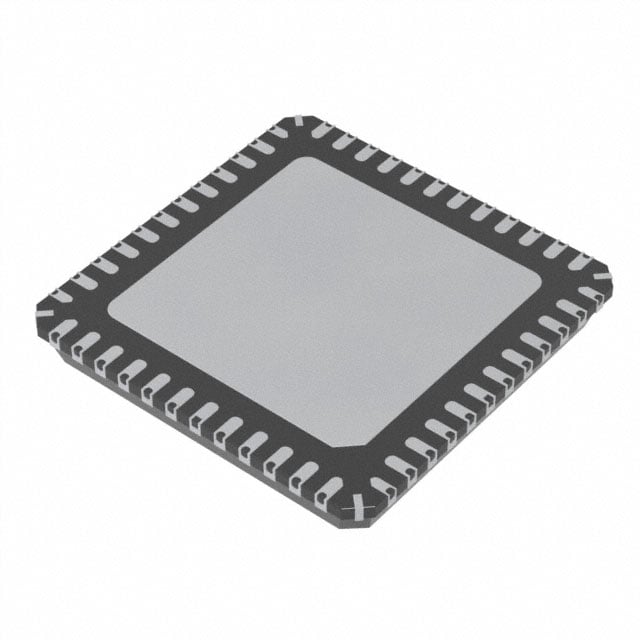

TLE95603QXXUMA1 Infineon Motor Driver | PG-VQFN-48-31 | 3-Phase, 40V, 1.5A

Product Overview

The TLE95603QXXUMA1 is a highly integrated three-phase motor driver IC from Infineon, designed for automotive and industrial applications. It combines a 3-phase bridge driver with a high-voltage DC/DC converter, LIN transceiver, and various protection features in a compact PG-VQFN-48-31 package. This device is optimized for driving brushless DC (BLDC) motors with currents up to 1.5 A per phase and supply voltages up to 40 V. Its advanced diagnostic and protection capabilities make it ideal for safety-critical systems.

Detailed Technical Specifications

Key Features

• Integrated 3-phase bridge driver with charge pump for 100% duty cycle
• Built-in LIN transceiver (LIN 2.2A) for bus communication
• High-voltage DC/DC converter (buck) for external loads
• Comprehensive protection: overcurrent, overtemperature, undervoltage, cross-conduction, open load
• SPI interface for configuration and diagnostics
• Low quiescent current in sleep mode (<10 µA)
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Engine cooling fans, HVAC blowers, oil pumps, water pumps
• Industrial: 5G base station cooling fans, industrial fans, pumps, actuators
• Consumer: Home appliance motors (e.g., vacuum cleaners, air purifiers)
• Specific examples: 5G base station fan control, automotive dashboard blower, electric water pump for EVs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLE95603QXXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
