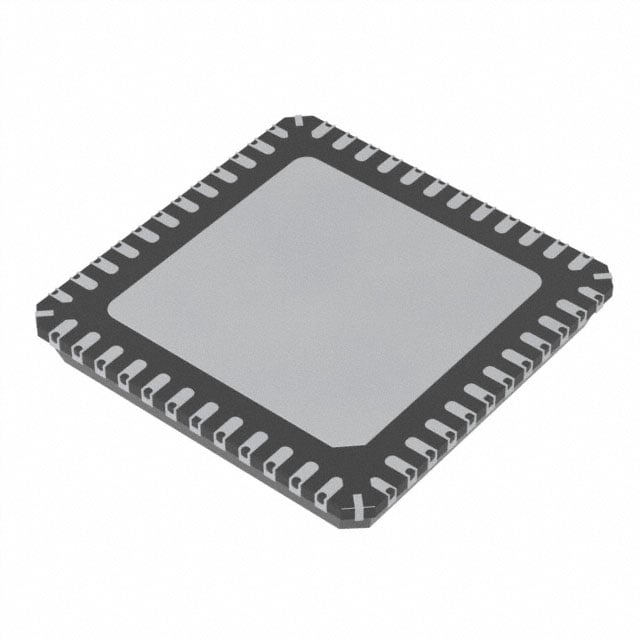

TLE9842QXXUMA1 Infineon Motor Control MCU | PG-VQFN-48-31 | ARM Cortex-M0, 48MHz

Product Overview

The Infineon TLE9842QXXUMA1 is a highly integrated system-on-chip (SoC) designed for automotive motor control applications. It combines an ARM Cortex-M0 core running at up to 48 MHz with a powerful motor control peripheral set, including a 3-phase bridge driver, current sense amplifiers, and a LIN transceiver. The device is housed in a compact PG-VQFN-48-31 package, making it ideal for space-constrained designs. With its rich analog and digital integration, the TLE9842QXXUMA1 simplifies the design of brushless DC (BLDC) motor control systems, reducing BOM cost and board space.

Detailed Technical Specifications

Key Features

• Integrated ARM Cortex-M0 core for efficient motor control algorithms
• On-chip 3-phase bridge driver with charge pump for high-side N-channel MOSFETs
• Two differential current sense amplifiers for phase current monitoring
• LIN 2.2 transceiver for automotive network communication
• Wide supply voltage range (5.5 V to 28 V) suitable for 12 V and 24 V systems
• Comprehensive protection features including overcurrent, overtemperature, and undervoltage lockout
• Low-power modes for battery-operated applications
• Small footprint PG-VQFN-48-31 package for space-constrained designs

Target Applications

• Automotive BLDC motor control for electric power steering (EPS) systems
• Engine cooling fan modules in passenger cars
• HVAC blower motors for cabin climate control
• Fuel pump and oil pump control units
• Industrial pump and fan drives requiring LIN communication
• 12V/24V brushless DC motor control in e-bikes and scooters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLE9842QXXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
