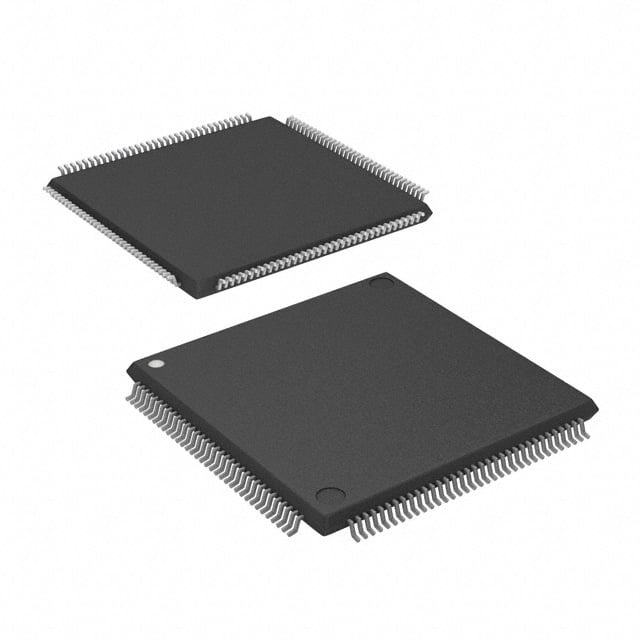

XC167CI16F40FBBKXQMA1 Infineon MCU | PG-TQFP-144-7 | 16-bit, 40MHz

Product Overview

The Infineon XC167CI16F40FBBKXQMA1 is a high-performance 16-bit microcontroller based on the C166S V2 core, operating at up to 40 MHz. It is housed in a PG-TQFP-144-7 package and is designed for demanding real-time control applications. With 128 KB of Flash memory, 8 KB of RAM, and a rich set of peripherals including multiple CAN, SPI, and ADC modules, this MCU offers a robust solution for automotive and industrial systems.

Detailed Technical Specifications

Key Features

• High-performance 16-bit C166S V2 CPU with 5-stage pipeline
• Up to 40 MHz operation with single-cycle instruction execution
• 128 KB on-chip Flash with 100k erase/write cycles
• 8 KB on-chip RAM
• Two CAN nodes (TwinCAN) with 32 message objects each
• 16-channel 10-bit ADC with conversion time < 1 µs
• Flexible PWM generation via CAPCOM6 and GPTA
• Up to 103 general-purpose I/O pins
• On-chip debug support (JTAG)
• Wide operating voltage range (3.0V to 5.5V)
• Extended temperature range (-40°C to +125°C)

Target Applications

The XC167CI16F40FBBKXQMA1 is ideal for automotive and industrial control applications such as:

• Engine control units (ECU) for gasoline and diesel engines
• Transmission control modules
• Electric power steering systems
• 5G base station power management
• Industrial motor drives and inverters
• Automotive dashboard controllers
• Battery management systems (BMS)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for XC167CI16F40FBBKXQMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

Infineon XC167CI16F40FBBKXQMA1 是一款基於 C166S V2 內核的高性能 16 位微控制器，工作頻率高達 40 MHz，採用 PG-TQFP-144-7 封裝。它配備 128 KB 閃存、8 KB RAM 以及豐富的外設，包括多個 CAN、SPI 和 ADC 模塊，為汽車和工業控制應用提供強大的解決方案。

詳細技術參數

核心特性

• 高性能 16 位 C166S V2 CPU，5 級流水線
• 最高 40 MHz 操作，單週期指令執行
• 128 KB 片上閃存，10 萬次擦寫
• 8 KB 片上 RAM
• 兩個 CAN 節點 (TwinCAN)，每個 32 個消息對象
• 16 通道 10 位 ADC，轉換時間 < 1 µs
• 通過 CAPCOM6 和 GPTA 實現靈活的 PWM 生成
• 最多 103 個通用 I/O 引腳
• 片上調試支持 (JTAG)
• 寬工作電壓範圍 (3.0V 至 5.5V)
• 擴展溫度範圍 (-40°C 至 +125°C)

典型應用場景

XC167CI16F40FBBKXQMA1 適用於汽車和工業控制應用，例如：

• 汽油和柴油發動機控制單元 (ECU)
• 變速箱控制模塊
• 電動助力轉向系統
• 5G 基站電源管理
• 工業電機驅動器和逆變器
• 汽車儀表盤控制器
• 電池管理系統 (BMS)

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 XC167CI16F40FBBKXQMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
