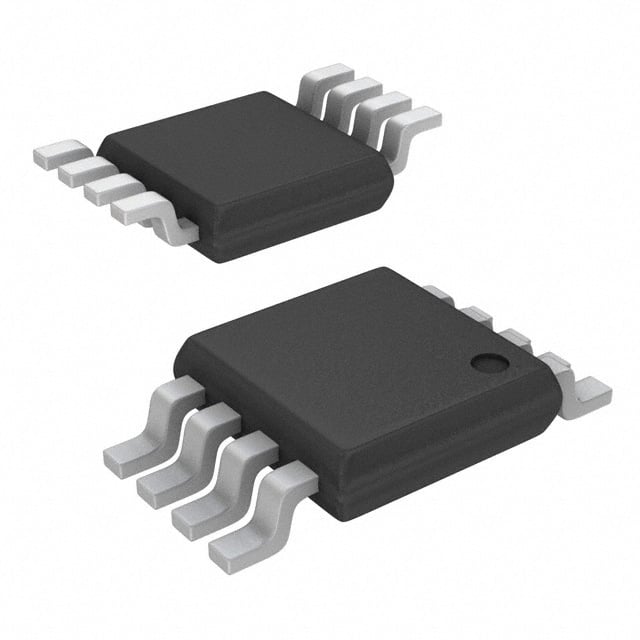

PCA9632DP1,118 NXP LED Driver | 8-TSSOP | I2C, 4-bit PWM

Product Overview

The PCA9632DP1,118 from NXP Semiconductors is a 4-bit LED driver with integrated I2C-bus interface, designed for efficient control of up to 4 individual LEDs. Housed in a compact 8-TSSOP package, this device offers programmable blink rates and dimming control via PWM, making it ideal for status indication, backlighting, and visual feedback in a wide range of applications. Its low standby current and wide operating voltage range (2.3V to 5.5V) ensure compatibility with both 3.3V and 5V systems.

Detailed Technical Specifications

Key Features

• I2C-bus interface with fixed slave address
• 4 open-drain outputs with 25 mA sink capability
• Programmable PWM dimming (4-bit) for each output
• Internal oscillator for blink timing
• Low standby current (1 µA)
• Wide supply voltage range (2.3V to 5.5V)
• Schmitt trigger action for noise immunity
• ESD protection exceeds 2000 V HBM

Target Applications

• Status indicators in 5G base stations (e.g., power/network status LEDs)
• Dashboard backlighting in automotive infotainment systems
• LED control in smart home devices (e.g., smart switches, thermostats)
• Visual feedback in industrial control panels (e.g., PLCs, HMIs)
• Battery-powered portable electronics (e.g., wearables, IoT sensors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCA9632DP1,118. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
