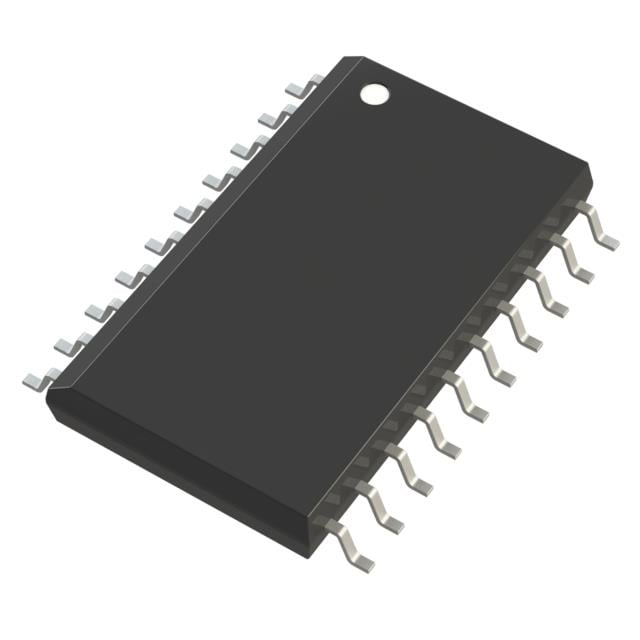

E-L9826 ST Power Distribution Switch | 20-SO | 8-Channel, 0.7A, 45V

Product Overview

The E-L9826 is a monolithic 8-channel low-side driver designed by STMicroelectronics, specifically for automotive and industrial applications. It integrates eight power DMOS transistors with a serial control interface, providing robust protection and diagnostic features. Housed in a compact 20-SO package, it offers a cost-effective solution for driving resistive, inductive, and capacitive loads.

Detailed Technical Specifications

Key Features

• 8-channel low-side driver with SPI control
• High output current capability: 0.7 A per channel
• Wide supply voltage range: 4.5 V to 45 V
• Low on-resistance for reduced power dissipation
• Comprehensive protection: overcurrent, overtemperature, short-circuit, undervoltage
• Diagnostic functions: open-load detection, fault reporting
• Automotive-grade qualification (AEC-Q100)
• Compact 20-SO package for space-constrained designs

Target Applications

• Automotive body control modules: driving relays, solenoids, and LEDs in door locks, window lifts, and seat adjusters
• Industrial automation: controlling actuators, valves, and indicators in PLCs and I/O modules
• 5G base stations: managing power distribution and load switching in remote radio units
• Dashboard and infotainment systems: driving backlight LEDs and haptic feedback actuators
• Smart home devices: controlling lighting, motorized blinds, and security systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for E-L9826. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
