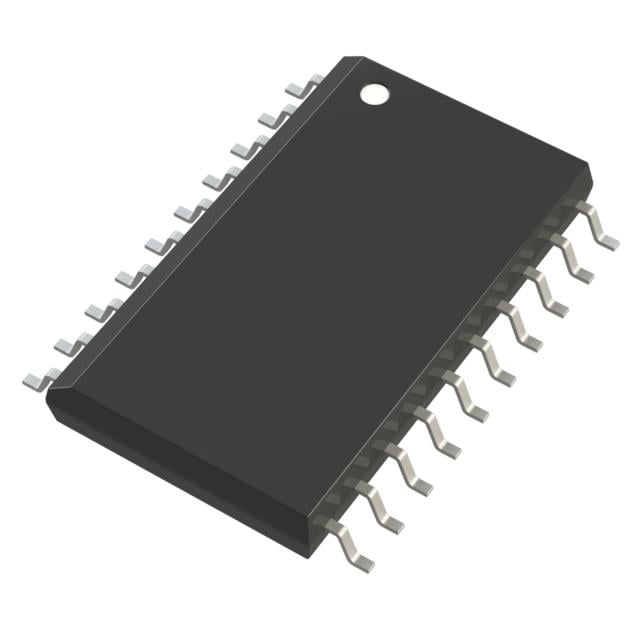

L297D013TR ST Stepper Motor Controller | 20-SO | 10V-46V, 1.5A

Product Overview

The L297D013TR is a stepper motor controller IC from STMicroelectronics, designed for bipolar and unipolar stepper motors. It integrates a translator, PWM current control, and a bridge driver in a 20-SO package. Operating from 10V to 46V, it delivers up to 1.5A per phase, making it ideal for precise motion control in industrial and automotive applications.

Detailed Technical Specifications

Key Features

• Integrated translator for easy step/direction control
• PWM constant current control with selectable decay mode
• Half-step, full-step, and microstepping capability
• Low power dissipation with DMOS output stage
• Built-in protection: thermal shutdown, cross-conduction, and overcurrent
• Wide supply voltage range suitable for various applications

Target Applications

• 5G base station antenna alignment systems
• Automotive dashboard stepper motors for gauge clusters
• Industrial automation: CNC machines, 3D printers, and robotics
• Medical equipment: syringe pumps and diagnostic devices
• Office automation: printers and scanners
