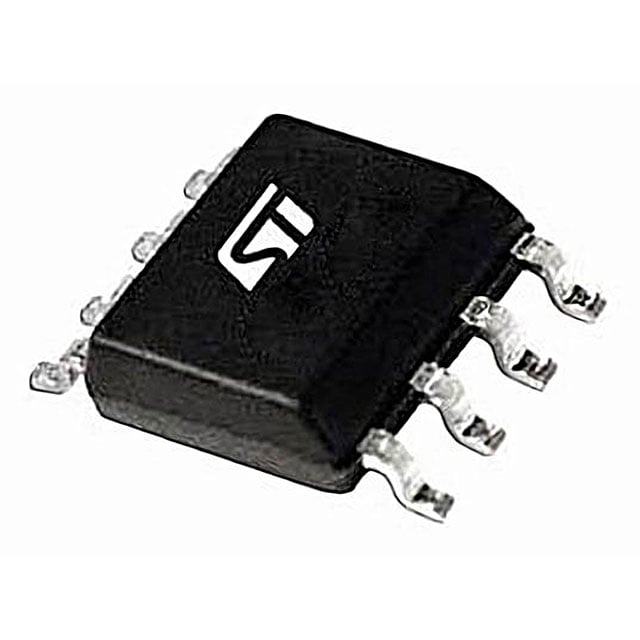

L6389ED ST Gate Driver | 8-SOIC | 600V, 0.65A Sink/Source

Product Overview

The L6389ED is a high-voltage gate driver IC manufactured by STMicroelectronics, designed for driving N-channel power MOSFETs and IGBTs in half-bridge configurations. It features a bootstrap architecture with a floating high-side driver capable of withstanding up to 600V. The device is housed in an 8-pin SOIC package, making it suitable for compact power conversion applications. With a typical sink/source current capability of 0.65A, it provides efficient switching performance for medium-power systems.

Detailed Technical Specifications

Key Features

• High-voltage rail up to 600V
• Bootstrap diode integrated
• Under-voltage lockout (UVLO) on both low and high sides
• Interlocking function to prevent cross-conduction
• Matched propagation delays for both channels
• Wide operating temperature range

Target Applications

The L6389ED is ideal for half-bridge and full-bridge converters in applications such as:

• 5G base station power supplies
• Automotive dashboard power inverters
• Industrial motor drives (e.g., fans, pumps)
• DC-DC converters for telecom equipment
• Uninterruptible power supplies (UPS)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6389ED. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
