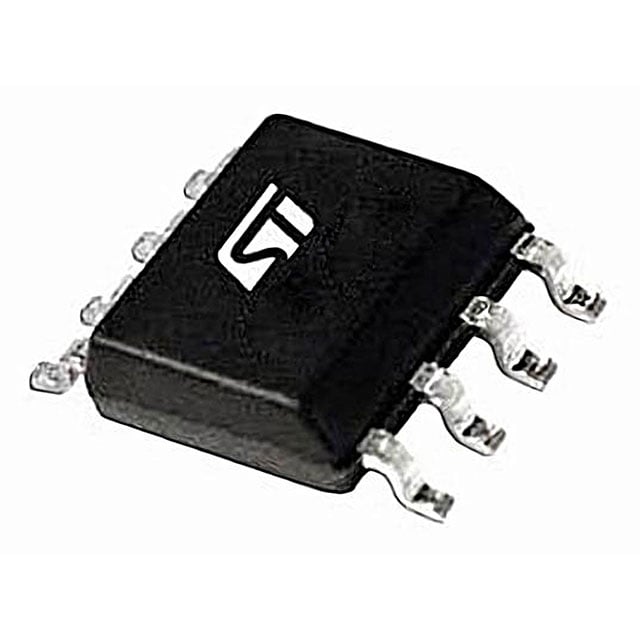

L6561D ST Power Factor Correction IC | 8-SOIC | 10-22V Startup, 50-300kHz

Product Overview

The L6561D is a high-performance power factor correction (PFC) controller IC from STMicroelectronics, designed for transition-mode (TM) operation. It integrates advanced features to achieve near-unity power factor and low harmonic distortion in AC-DC converters. The device is housed in a compact 8-SOIC package, making it suitable for space-constrained applications. With a wide startup voltage range (10-22V) and programmable switching frequency (50-300kHz), the L6561D offers flexibility for various power levels from 50W to 400W.

Detailed Technical Specifications

Key Features

• Transition-mode (TM) PFC control for low EMI
• Accurate adjustable output overvoltage protection
• Low startup current (50 µA typ) for efficient standby
• Programmable frequency and maximum on-time
• Internal leading-edge blanking on current sense
• Disable function for standby operation
• Compliant with IEC 61000-3-2 harmonic limits

Target Applications

• AC-DC adapters for laptops and monitors (e.g., Dell 90W adapter)
• LED lighting drivers (e.g., Philips 100W streetlight driver)
• Industrial power supplies for 5G base stations (e.g., Huawei 5G RRU power module)
• Consumer electronics like TV power boards (e.g., Samsung QLED TV PFC stage)
• Automotive chargers for electric vehicles (e.g., Tesla onboard charger auxiliary supply)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6561D. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
