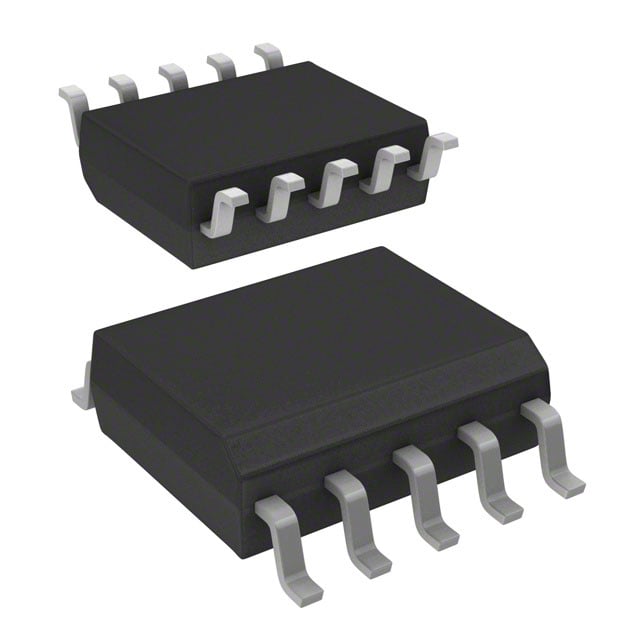

L6564DTR ST Power Factor Correction | 10-SOP | 10V-22V Supply, 50kHz-130kHz

Product Overview

The L6564DTR is a highly integrated, current-mode Power Factor Correction (PFC) controller from STMicroelectronics, designed for medium-power AC-DC converters. It operates in transition mode (TM) and provides near-unity power factor with low harmonic distortion. The device is housed in a compact 10-SOP package, making it suitable for space-constrained applications. With a wide supply voltage range of 10V to 22V and an adjustable switching frequency from 50kHz to 130kHz, the L6564DTR offers flexibility for various PFC designs.

Detailed Technical Specifications

Key Features

• Transition-mode PFC controller with high accuracy
• Low start-up current (50µA typical) for efficient standby
• Programmable output voltage via external divider
• Overvoltage protection (OVP) and undervoltage lockout (UVLO)
• Boost inductor demagnetization detection
• Adjustable frequency for EMI optimization
• Internal 1.5A totem-pole gate driver

Target Applications

• AC-DC adapters for laptops and monitors (e.g., 65W USB-C PD adapters)
• LED lighting drivers (e.g., 30W-100W street lighting)
• Industrial power supplies for 5G base stations (e.g., 48V/500W rectifiers)
• Home appliance power supplies (e.g., air conditioner inverter boards)
• Telecom power supplies (e.g., -48V DC-DC converters)
