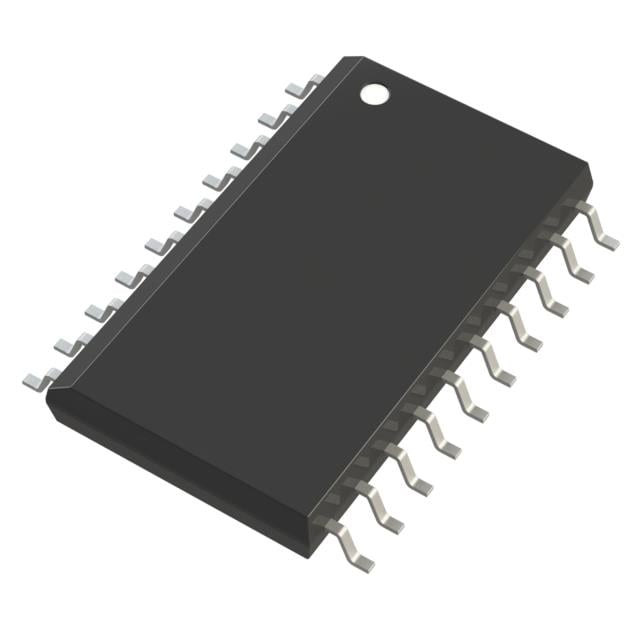

L9904 ST Automotive Gate Driver | 20-SO | 4-Channel, 600mA

Product Overview

The L9904 is a monolithic quad low-side driver designed by STMicroelectronics for automotive and industrial applications. It integrates four independent low-side drivers with a common output clamp for inductive loads. Housed in a compact 20-SO package, it provides up to 600mA per channel and features over-temperature and short-circuit protection. The device operates from a 4.5V to 36V supply voltage, making it suitable for 12V and 24V systems.

Detailed Technical Specifications

Key Features

• Four independent low-side drivers with common clamp
• High output current: 600 mA per channel
• Wide supply voltage range: 4.5V to 36V
• Integrated over-temperature and short-circuit protection
• Output clamp for fast inductive load demagnetization
• Low standby current consumption
• Compatible with 3.3V and 5V logic levels
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive: Engine control units (ECU), transmission control, body control modules (BCM), and lighting systems (e.g., LED daytime running lights)
• Industrial: Programmable logic controllers (PLC), motor control for small DC motors, solenoid drivers in factory automation
• Consumer: Home appliance control (e.g., washing machine valves, dishwasher solenoids)
• Specific examples: 5G base station cooling fan drivers, automotive dashboard indicator drivers, industrial valve actuators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L9904. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
