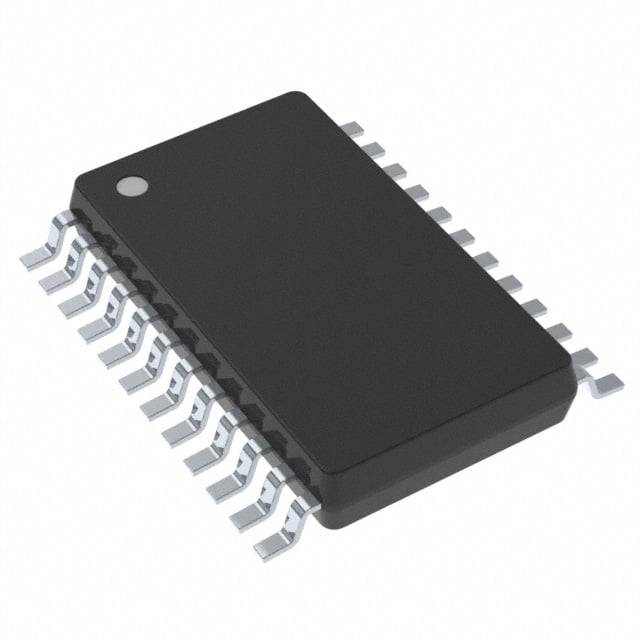

L9942XP1TR ST Automotive Stepper Driver | PowerSSO-24 | 1.5A, 1/16 Microstepping

Product Overview

The L9942XP1TR is a fully integrated stepper motor driver from STMicroelectronics, designed for automotive and industrial applications. It features dual H-bridge drivers capable of driving up to 1.5 A per phase with 1/16 microstepping resolution. The device is housed in a compact PowerSSO-24 package, offering excellent thermal performance and space savings. It includes advanced protection features such as overcurrent, overtemperature, and short-circuit detection, making it ideal for harsh environments.

Detailed Technical Specifications

Key Features

• Dual H-bridge stepper motor driver
• 1.5 A output current per phase
• 1/16 microstepping for smooth motion
• Integrated current sensing and regulation
• SPI interface for configuration and diagnostics
• Comprehensive protection: overcurrent, overtemperature, short-circuit, undervoltage lockout
• Low RDS(on) power MOSFETs for high efficiency
• AEC-Q100 qualified for automotive applications

Target Applications

The L9942XP1TR is ideal for automotive and industrial applications requiring precise stepper motor control. Specific examples include:

• Automotive headlamp leveling systems
• HVAC actuator control in vehicles
• Industrial valve positioning
• Robotic arm joint control
• 5G base station antenna tilt adjustment
• Dashboard gauge pointers
• Medical pump systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L9942XP1TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
