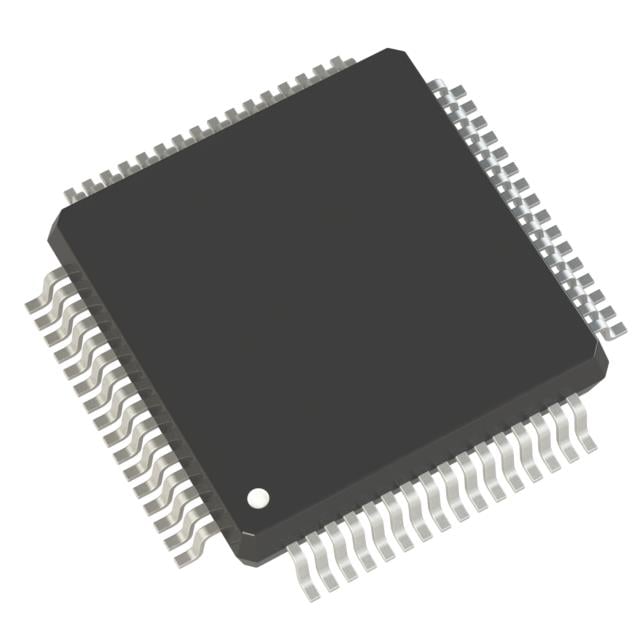

L99DZ200GTR ST Motor Driver | 64-LQFP (10x10) | 6-18V, 3.5A

Product Overview

The L99DZ200GTR is a highly integrated automotive motor driver IC from STMicroelectronics, designed for DC motor and stepper motor control in automotive body applications. It features a dual H-bridge configuration capable of driving up to 3.5A continuous current per channel, with an operating voltage range of 6V to 18V. The device includes advanced protection features such as overcurrent, overtemperature, and short-circuit protection, making it ideal for reliable operation in harsh automotive environments. The 64-LQFP (10x10) package ensures compact design for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual H-bridge for independent control of two DC motors or one stepper motor
• Low RDS(on) power MOSFETs for high efficiency
• Integrated PWM current regulation with programmable off-time
• SPI interface for configuration and diagnostics
• Comprehensive protection: overcurrent, overtemperature, short-circuit, and undervoltage
• Cross-conduction protection and shoot-through prevention
• Automotive-grade qualification (AEC-Q100)

Target Applications

• Automotive body control modules: window lift, sunroof, seat adjustment, and door lock actuators
• HVAC flap control in automotive climate systems
• Stepper motor control for instrument cluster pointers (e.g., dashboard gauges)
• Industrial automation: small DC motor drives for conveyor belts or robotic arms
• 5G base station cooling fan control (low-voltage DC fans)
