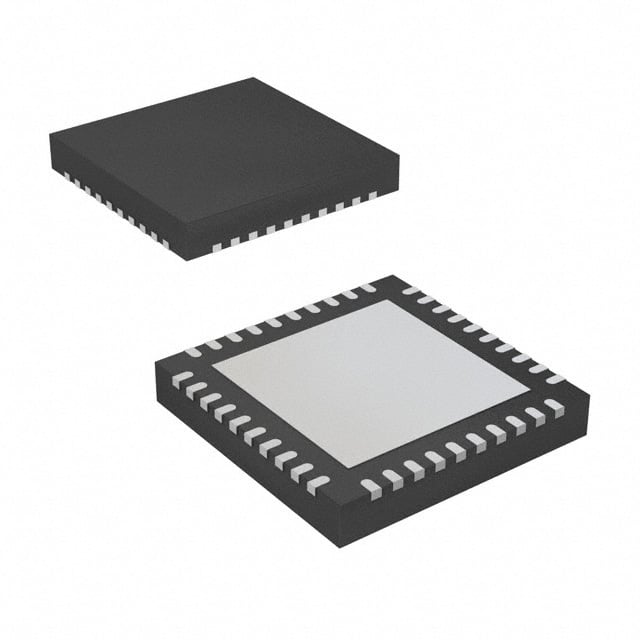

LED2472GQTR ST LED Driver | 40-MLPQ-EP(5x5) | 24-Channel, 12-bit PWM

Product Overview

The LED2472GQTR from STMicroelectronics is a 24-channel constant-current LED driver designed for high-performance lighting applications. It integrates 12-bit PWM dimming control, enabling smooth and precise brightness adjustment. Housed in a compact 40-MLPQ-EP (5x5 mm) package, it offers excellent thermal performance and space-saving benefits. The device supports a wide input voltage range and features advanced fault detection, making it ideal for demanding automotive and industrial environments.

Detailed Technical Specifications

Key Features

• 24 constant-current outputs with 12-bit PWM dimming
• Programmable output current via external resistor
• SPI interface for daisy-chain operation
• Built-in fault detection (open/short LED, overtemperature)
• Thermal shutdown protection
• Low quiescent current in shutdown mode
• Compact MLPQ-EP package for efficient heat dissipation

Target Applications

• Automotive exterior lighting (e.g., LED headlamps, daytime running lights, turn signals)
• Automotive interior lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial LED signage and displays
• 5G base station status indicators
• General-purpose LED matrix control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LED2472GQTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
