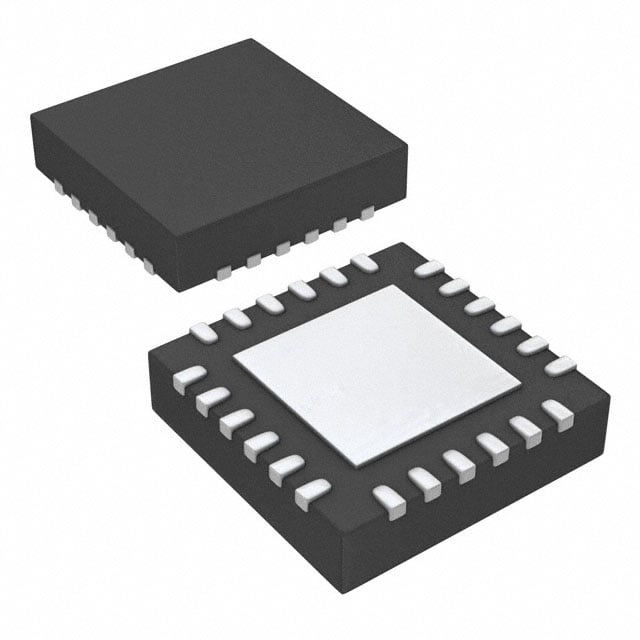

LED7706TR ST LED Driver | 24-VFQFPN (4x4) | 6-Channel, 85mA/Channel

Product Overview

The LED7706TR from STMicroelectronics is a high-efficiency, 6-channel LED driver designed for backlighting and general illumination applications. It operates from a wide input voltage range of 4.5V to 36V and can drive up to 85mA per channel. The device features a boost converter with integrated power MOSFET, enabling efficient power conversion for series-connected LEDs. Its compact 24-VFQFPN (4x4mm) package makes it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 6-channel constant current LED driver
• Integrated boost converter with 40V power MOSFET
• PWM dimming with 1000:1 ratio
• Analog dimming via external resistor
• Fault protection: overvoltage, overcurrent, thermal shutdown
• Spread spectrum for EMI reduction

Target Applications

• Automotive dashboard backlighting
• 5G base station status indicators
• Industrial control panel illumination
• General purpose LED lighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LED7706TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
