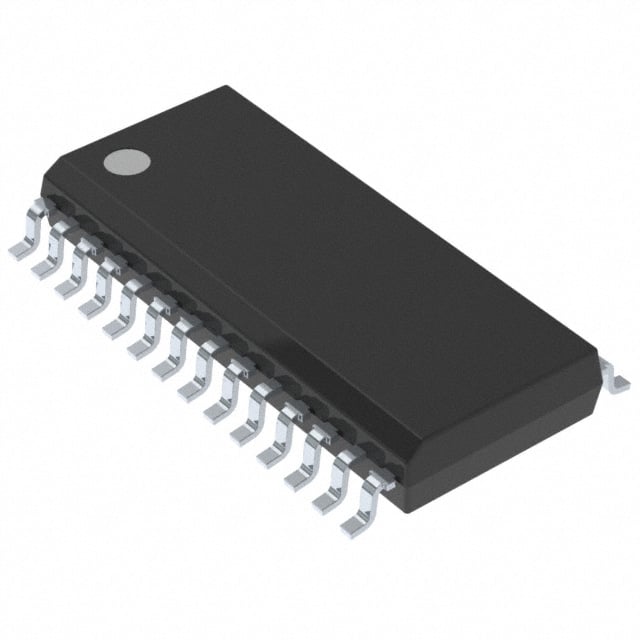

M41ST87WMX6TR ST RTC & NVRAM Supervisor | 28-SO | I2C, 64B SRAM

Product Overview

The M41ST87WMX6TR is a highly integrated real-time clock (RTC) and NVRAM supervisor from STMicroelectronics, designed for applications requiring precise timekeeping and non-volatile memory retention. Housed in a 28-pin SOIC package, this device combines a 64-byte battery-backed SRAM, a 32.768 kHz crystal oscillator, and a power-fail detection circuit. It operates over a wide voltage range of 2.7V to 5.5V and provides I2C interface for communication. The M41ST87WMX6TR is ideal for industrial, automotive, and telecom systems where reliable time stamping and data retention are critical.

Detailed Technical Specifications

Key Features

• Integrated 64-byte battery-backed SRAM for data retention
• Low power consumption: 0.9 µA typical timekeeping current
• I2C serial interface with up to 400 kHz clock frequency
• Power-fail detection and automatic switch to backup battery
• Programmable alarm and interrupt output
• 32.768 kHz crystal oscillator with on-chip trimming
• Wide operating voltage range (2.7V to 5.5V)
• Industrial temperature range (-40°C to +85°C)

Target Applications

• 5G base stations: time synchronization and event logging
• Automotive dashboard: real-time clock for trip data and maintenance reminders
• Industrial PLCs: timestamping of process data
• Smart meters: energy consumption recording with time stamps
• Medical devices: patient data logging with time correlation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for M41ST87WMX6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

M41ST87WMX6TR 是意法半導體（STMicroelectronics）推出的一款高度集成的實時時鐘（RTC）與非易失性存儲器（NVRAM）監控器，專為需要精確計時和非易失性數據保留的應用而設計。該器件採用 28 引腳 SOIC 封裝，集成了 64 字節電池備份 SRAM、32.768 kHz 晶體振盪器和電源失效檢測電路。工作電壓範圍為 2.7V 至 5.5V，並提供 I2C 接口進行通信。M41ST87WMX6TR 非常適合工業、汽車和電信系統，其中可靠的時間戳記和數據保留至關重要。

詳細技術參數

核心特性

• 集成 64 字節電池備份 SRAM，用於數據保留
• 低功耗：典型計時電流 0.9 µA
• I2C 串行接口，時鐘頻率最高 400 kHz
• 電源失效檢測並自動切換至備用電池
• 可編程報警和中斷輸出
• 32.768 kHz 晶體振盪器，帶片上微調
• 寬工作電壓範圍（2.7V 至 5.5V）
• 工業溫度範圍（-40°C 至 +85°C）

典型應用場景

• 5G 基站：時間同步和事件記錄
• 汽車儀表板：行車數據和維護提醒的實時時鐘
• 工業 PLC：過程數據的時間戳記
• 智能電表：帶時間戳的能耗記錄
• 醫療設備：帶時間關聯的患者數據記錄

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 M41ST87WMX6TR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
