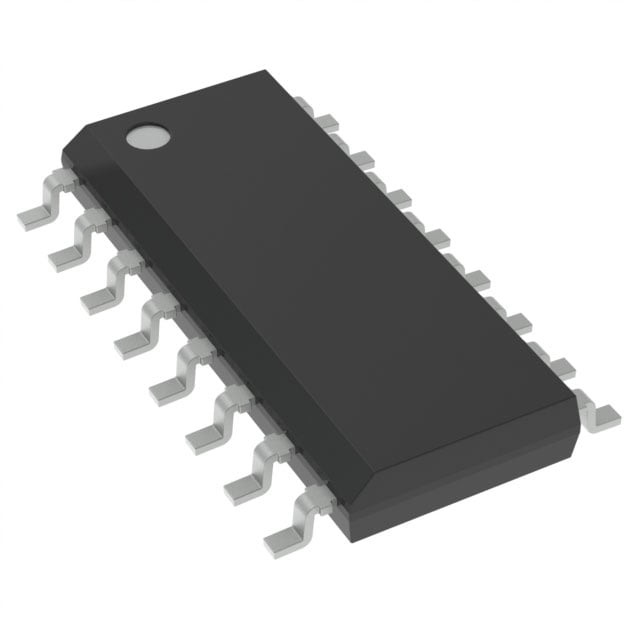

SG2525AP ST PWM Controller | 16-SO | 8-35V, 100-400kHz

Product Overview

The SG2525AP from STMicroelectronics is a high-performance pulse width modulation (PWM) controller designed for a wide range of power conversion applications. Housed in a compact 16-SO package, this device integrates all necessary functions for controlling switching power supplies, including an oscillator, error amplifier, PWM comparator, and output drivers. With an operating voltage range of 8V to 35V and a switching frequency adjustable from 100kHz to 400kHz, the SG2525AP offers flexibility and efficiency for modern power systems.

Detailed Technical Specifications

Key Features

• Complete PWM control circuit with on-chip oscillator, error amplifier, and PWM comparator
• Under-voltage lockout (UVLO) with hysteresis
• Soft-start capability
• Shutdown control for power sequencing
• Double-pulse suppression logic
• Low standby current

Target Applications

• 5G base station power supplies
• Automotive dashboard power modules
• Industrial DC-DC converters
• Telecom rectifiers
• Battery chargers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SG2525AP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
