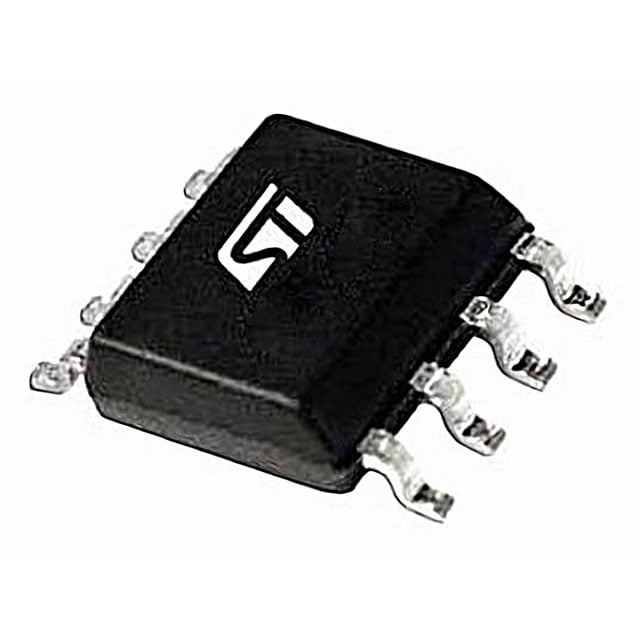

ST485BDR ST RS-485/RS-422 Transceiver | 8-SOIC | 5V, 2.5Mbps

Product Overview

The ST485BDR is a low-power, high-speed RS-485/RS-422 transceiver from STMicroelectronics, designed for balanced data transmission. It operates from a single 5V supply and delivers data rates up to 2.5 Mbps. The device features a 1/4 unit load receiver input impedance, allowing up to 128 transceivers on the bus. It is available in the compact 8-SOIC package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Low quiescent current: 300 µA typical
• Designed for RS-485 and RS-422 communication
• Thermal shutdown protection
• Short-circuit protection on driver outputs
• Glitch-free power-up/power-down
• Compatible with 3.3V logic (via VIO pin, if applicable)

Target Applications

• Industrial automation (e.g., PLC, motor drives)
• Building automation (e.g., HVAC controllers, lighting systems)
• Telecommunications (e.g., 5G base station backhaul, network switches)
• Automotive (e.g., dashboard display, infotainment systems)
• Security systems (e.g., CCTV cameras, access control panels)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ST485BDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
