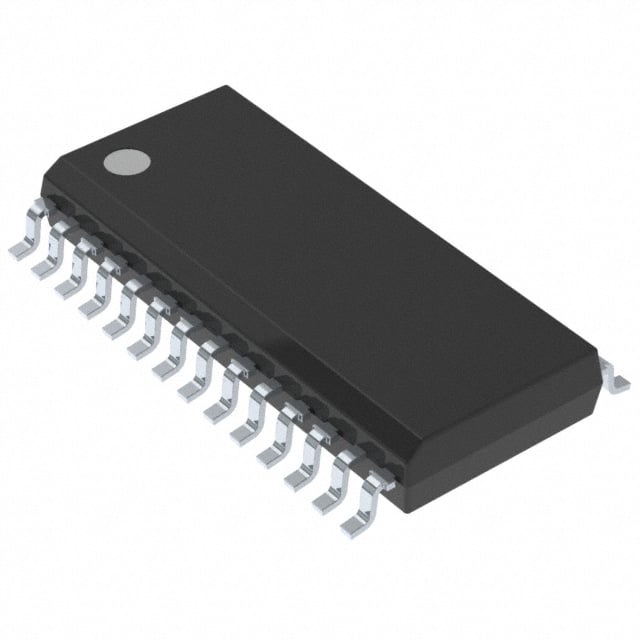

ST8024LCDR ST Smart Card Interface | 28-SO | 3V/5V Supply, ISO 7816-3

Product Overview

The ST8024LCDR is a complete, low-power, single-chip smart card interface from STMicroelectronics, designed to meet the stringent requirements of ISO 7816-3 and EMV 4.3 standards. It integrates a voltage regulator, clock generator, reset control, and bidirectional level shifters, enabling seamless communication between a microcontroller and a smart card. Housed in a compact 28-SO package, it operates from a 3V or 5V supply and supports both 3V and 5V smart cards, making it ideal for point-of-sale terminals, set-top boxes, and secure authentication systems.

Detailed Technical Specifications

Key Features

• Integrated voltage regulator for 3V or 5V card supply
• Built-in clock generator with frequency up to 20 MHz
• Automatic activation and deactivation sequence per ISO 7816-3
• Bidirectional level shifting for 1.8V/3V/5V microcontrollers
• Enhanced ESD protection on card interface pins
• Low power consumption with shutdown mode
• Fault detection: card removal, overcurrent, and thermal shutdown

Target Applications

• Point-of-Sale (POS) terminals (e.g., Verifone VX 520)
• Set-top boxes (e.g., Sky Q box for pay-TV access)
• Identity authentication systems (e.g., e-passport readers)
• Banking and financial terminals (e.g., ATM card readers)
• Access control systems (e.g., smart card door locks)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ST8024LCDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
