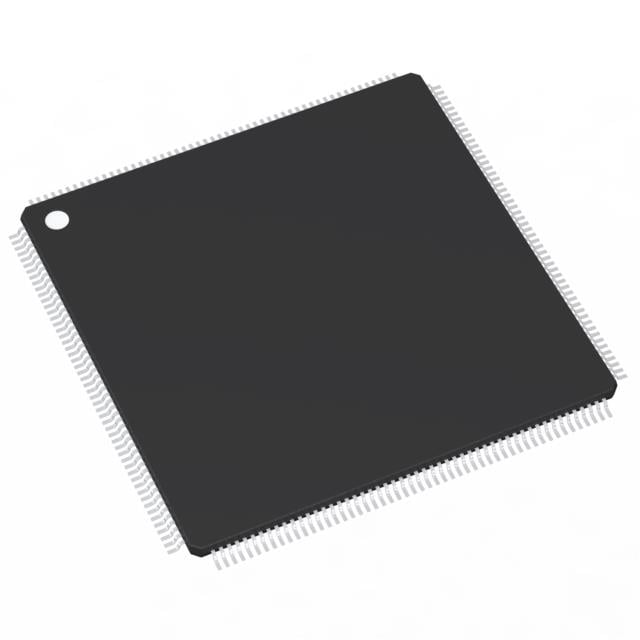

STM32F767BGT6 ST Microcontrollers MCU | 208-LQFP（28X28） | 2MB Flash, 512KB RAM

Product Overview

The STM32F767BGT6 is a high-performance ARM Cortex-M7 based microcontroller from STMicroelectronics, featuring a 32-bit RISC core operating at up to 216 MHz. It integrates 2 MB of Flash memory and 512 KB of SRAM, along with a rich set of peripherals and advanced connectivity options. Housed in a 208-pin LQFP package (28x28 mm), this MCU is designed for demanding applications requiring real-time control, digital signal processing, and high-speed data handling.

Detailed Technical Specifications

Key Features

• ARM Cortex-M7 core with single-precision FPU and DSP instructions
• 2 MB Flash with dual-bank support for read-while-write
• 512 KB SRAM including 128 KB data TCM RAM for real-time performance
• Chrom-ART Accelerator for enhanced graphics
• Hardware JPEG codec
• True random number generator (TRNG)
• Up to 168 GPIOs with interrupt capability
• Advanced connectivity: Ethernet MAC, USB OTG HS/FS, CAN 2.0B
• 12-bit ADCs with up to 7.2 MSPS
• Digital filters for sigma-delta modulators (DFSDM)
• Low-power modes: Sleep, Stop, Standby

Target Applications

• 5G base station control and monitoring
• Automotive dashboard and infotainment systems
• Industrial automation and PLCs
• Medical imaging and patient monitoring
• High-end audio processing and synthesis
• Robotics and drone flight controllers
• Smart grid and energy management

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F767BGT6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F767BGT6 是意法半導體推出的基於 ARM Cortex-M7 內核的高性能微控制器，32 位 RISC 內核最高工作頻率 216 MHz。集成 2 MB Flash 和 512 KB SRAM，配備豐富的外設和高級連接選項。採用 208 引腳 LQFP 封裝（28x28 mm），適用於需要實時控制、數字信號處理和高速數據處理的苛刻應用。

詳細技術參數

核心特性

• ARM Cortex-M7 內核，帶單精度 FPU 和 DSP 指令
• 2 MB Flash，支持雙 Bank 讀寫同時操作
• 512 KB SRAM，包括 128 KB 數據 TCM RAM 以實現實時性能
• Chrom-ART 加速器增強圖形處理
• 硬件 JPEG 編解碼器
• 真隨機數發生器 (TRNG)
• 最多 168 個 GPIO，支持中斷
• 高級連接：以太網 MAC、USB OTG HS/FS、CAN 2.0B
• 12 位 ADC，最高 7.2 MSPS
• 用於 Sigma-Delta 調製器的數字濾波器 (DFSDM)
• 低功耗模式：睡眠、停止、待機

典型應用場景

• 5G 基站控制與監控
• 汽車儀表盤和信息娛樂系統
• 工業自動化和 PLC
• 醫療成像和病人監護
• 高端音頻處理和合成
• 機器人和無人機飛行控制器
• 智能電網和能源管理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F767BGT6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
