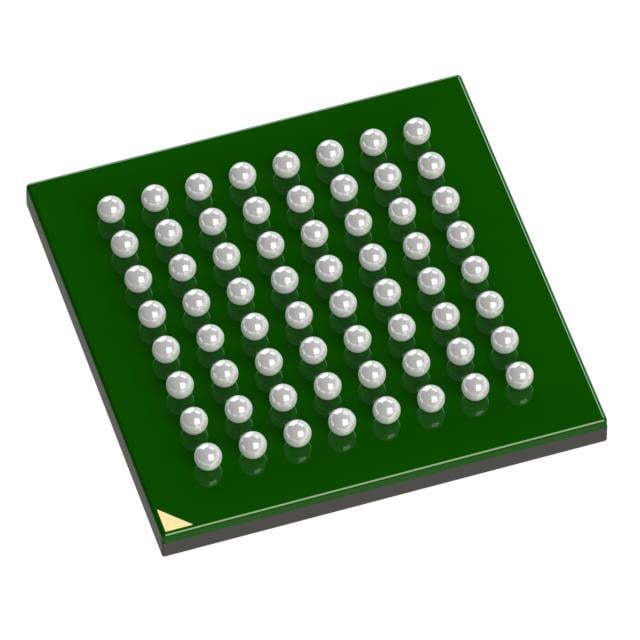

STM32L071RBH6 ST MCU | 64-TFBGA(5X5) | 192KB Flash, 20KB SRAM

Product Overview

The STM32L071RBH6 is an ultra-low-power ARM Cortex-M0+ microcontroller from STMicroelectronics, part of the STM32L0 series. It features 192KB Flash memory and 20KB SRAM, operating at up to 32 MHz. The device is housed in a compact 64-TFBGA (5x5 mm) package, making it ideal for space-constrained and battery-powered applications. It offers a rich set of peripherals including USB 2.0, multiple communication interfaces (I2C, SPI, USART), and advanced analog features such as a 12-bit ADC with hardware oversampling.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 87 µA/MHz in Run mode, 0.4 µA in Stop mode
• Dynamic voltage scaling to optimize power
• 5.5 µs wakeup time from Stop mode
• USB 2.0 crystal-less solution
• Hardware random number generator (RNG)
• AES-128 encryption hardware
• True CRC and 96-bit unique ID
• Up to 51 fast I/Os (46 I/Os 5V tolerant)
• 12-bit ADC with hardware oversampling (16-bit resolution)
• 2x ultra-low-power comparators
• LCD driver (8x28 or 4x32 segments)
• Touch sensing controller

Target Applications

The STM32L071RBH6 is designed for a wide range of applications requiring low power and high integration. Specific examples include:

• 5G base station control and monitoring modules
• Automotive dashboard controllers and body electronics
• Industrial sensors and actuators
• Smart home devices (thermostats, smart locks)
• Medical devices (glucose meters, pulse oximeters)
• Portable consumer electronics (wearables, fitness trackers)
• Battery management systems (BMS)
• IoT edge nodes and gateways

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32L071RBH6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32L071RBH6是意法半導體（STMicroelectronics）推出的超低功耗ARM Cortex-M0+微控制器，屬於STM32L0系列。它配備192KB快閃記憶體和20KB SRAM，最高工作頻率32 MHz。該器件採用緊湊的64-TFBGA（5x5 mm）封裝，非常適合空間受限和電池供電的應用。它提供豐富的外設，包括USB 2.0、多種通訊介面（I2C、SPI、USART）以及先進的類比功能（如帶硬體過採樣的12位ADC）。

詳細技術參數

核心特性

• 超低功耗：運行模式87 µA/MHz，停止模式0.4 µA
• 動態電壓調整以優化功耗
• 從停止模式喚醒僅需5.5 µs
• 無晶振USB 2.0解決方案
• 硬體隨機數生成器（RNG）
• AES-128加密硬體
• 真實CRC和96位唯一ID
• 最多51個快速I/O（46個5V容忍）
• 12位ADC帶硬體過採樣（16位解析度）
• 2個超低功耗比較器
• LCD驅動器（8x28或4x32段）
• 觸摸感應控制器

典型應用場景

STM32L071RBH6適用於需要低功耗和高整合度的廣泛應用。具體實例包括：

• 5G基站控制與監控模組
• 汽車儀表板控制器和車身電子
• 工業感測器和執行器
• 智慧家居設備（恆溫器、智慧鎖）
• 醫療設備（血糖儀、脈搏血氧儀）
• 可攜式消費電子（穿戴設備、健身追蹤器）
• 電池管理系統（BMS）
• 物聯網邊緣節點和閘道

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32L071RBH6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
